IN A CLASS OF ITS OWN
Synergy Fat
Dual Suspension
|
Fat Bike
|
full Carbon
|
26" Fat
|
120/110mm Travel
|
14.8kg
€3.699
Price incl. VAT excl. Local Import Taxes & Shipping Costs.
KEY FEATURES
- SB Carbon Full suspension frame, IDS, 110mm travel
- Rockshox Bluto 120 mm suspension fork
- Rockshox rear shock, Custom Tuned
- Shimano MT500 Hydraulic Disc Brakes
- VEE Tire Bulldozer 26x4.7", Foldable , Tubeless Ready
- SUNRingle MuleFut SL80 tubeless ready rims
- Weight: 14,8kg
-
OVERVIEW
![drop-down-arrow-icon-speedlab]()

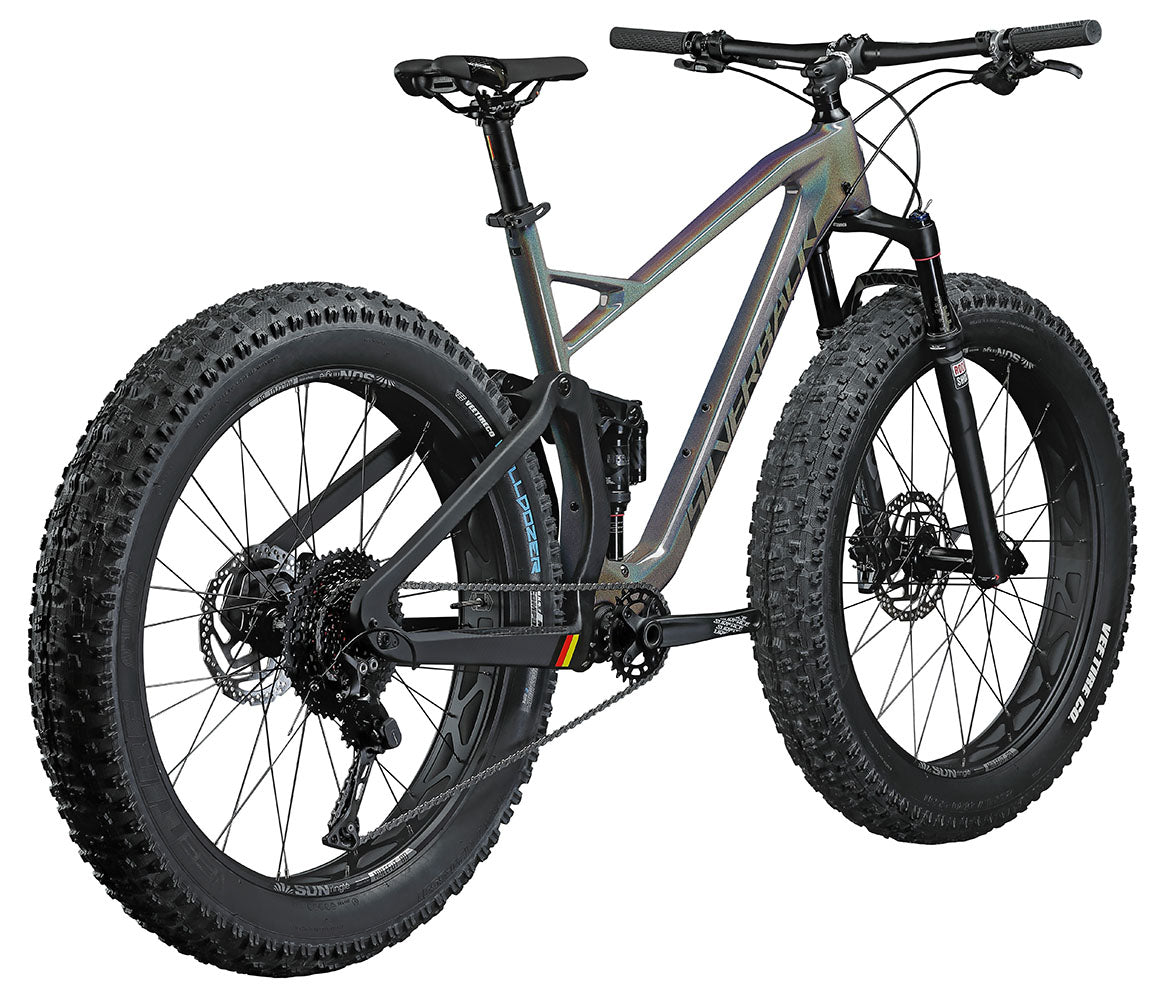

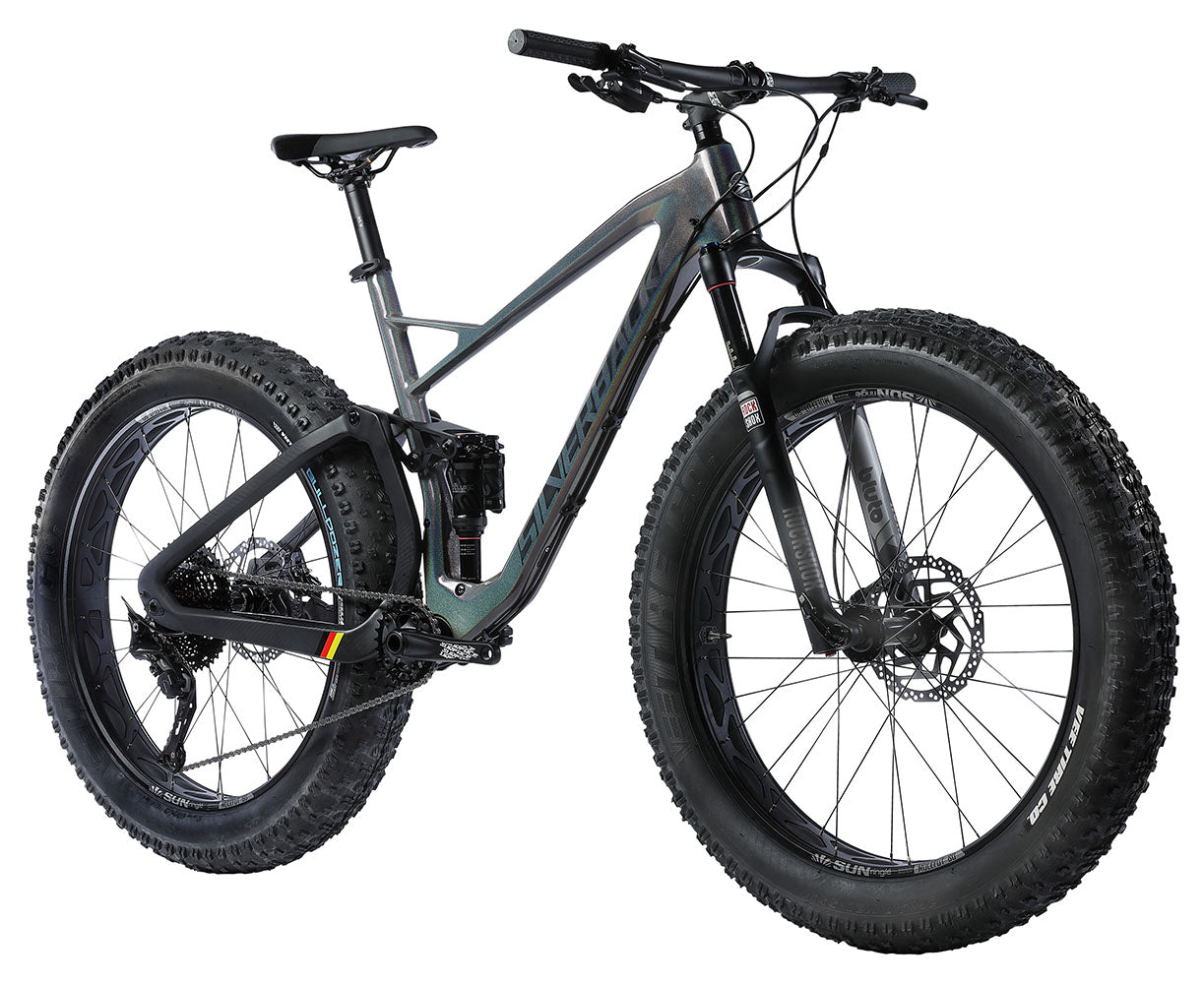

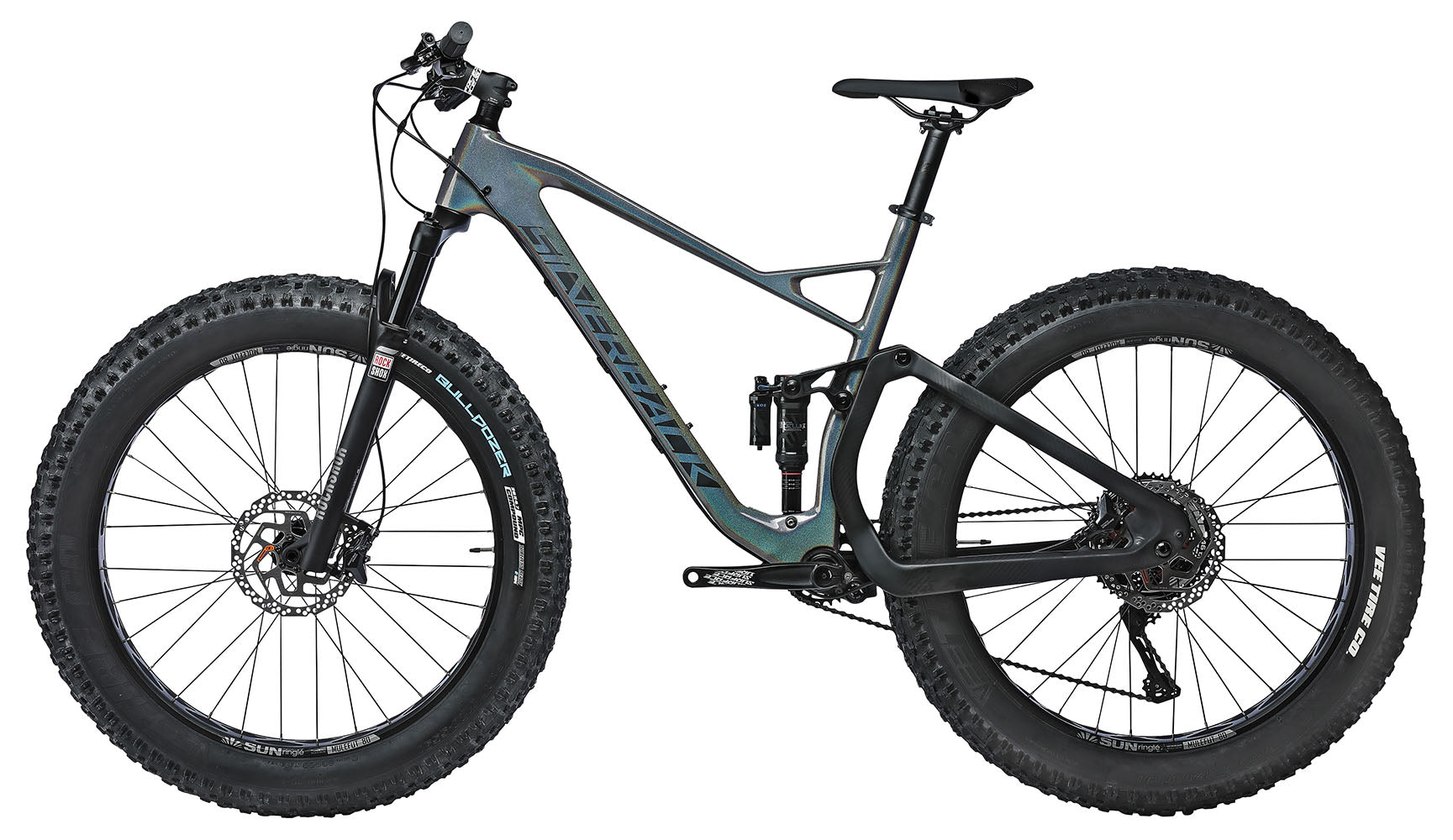

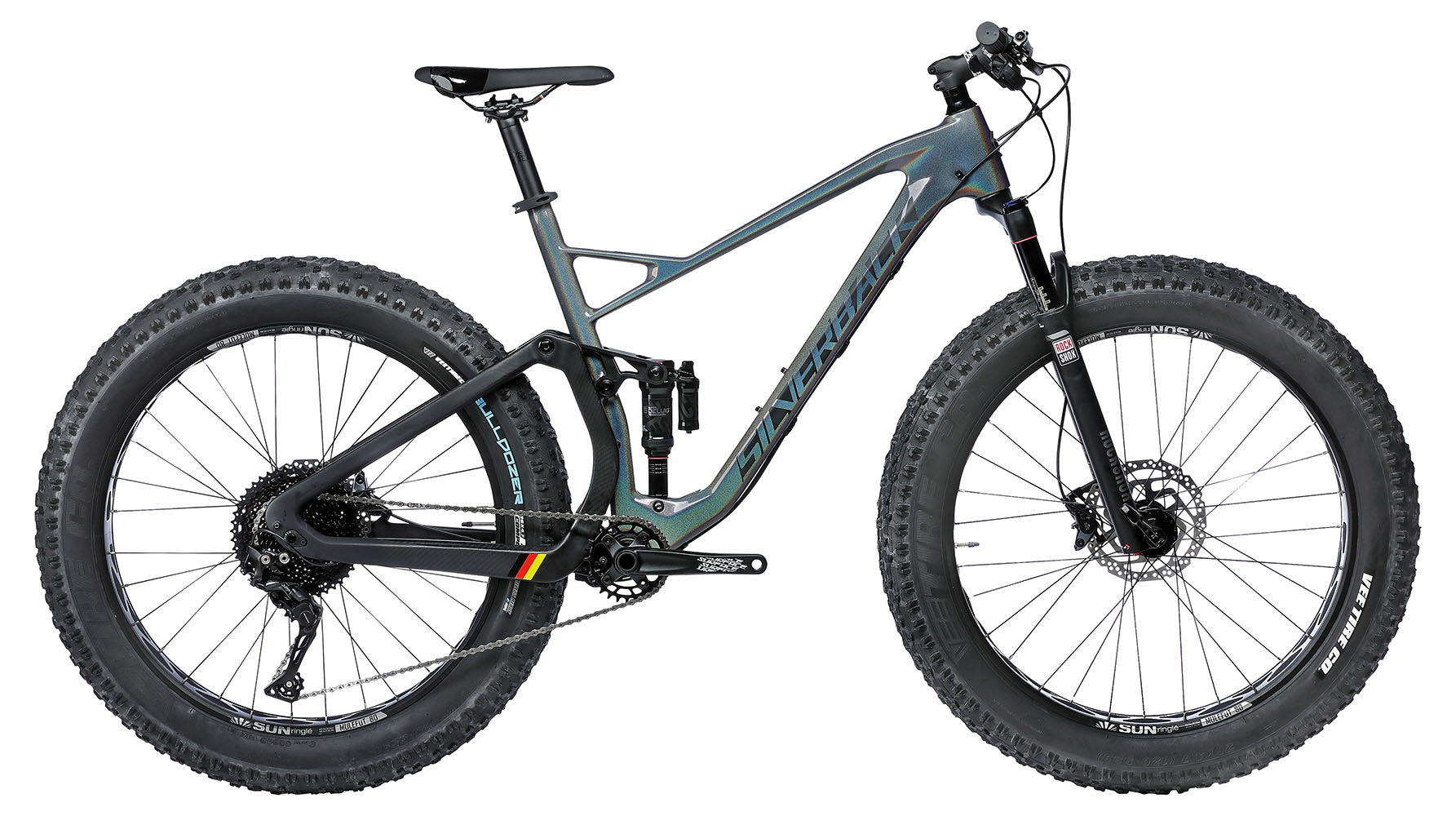

DUAL SUSPENSION CARBON FAT MOUNTAIN BIKE.
Embrace every condition, don't let even the snow keep you from a good rip on your bike! Synergy Fat gives you true, uncompromised performance in a full-suspension carbon fatbike. This full carbon suspension frame frame has great strength, stiffness, durability and low weight as its core. The bike uses 120mm of front suspension, while the IDS Revo rear suspension has 110mm of plush, responsive and predictable travel to attack the trails with speed and precision.
IDS SUSPENSION SYSTEM
IDS is Silverback's unique suspension technology. The lower linkage is concentric to the bottom bracket. This linkage uses large cartridge bearings to create a stiff and strong attachment point to the rear triangle.
ANTI SQUAT VALUE
This system also uses a relatively high anti-squat value, that is optimized to complement dual and single chainring setups ensuring that power transfer remains efficient and direct. The upper linkage design creates a progressive leverage ratio that results in great small bump sensitivity as well as large impact absorption.
-
Why it's best
![drop-down-arrow-icon-speedlab]()

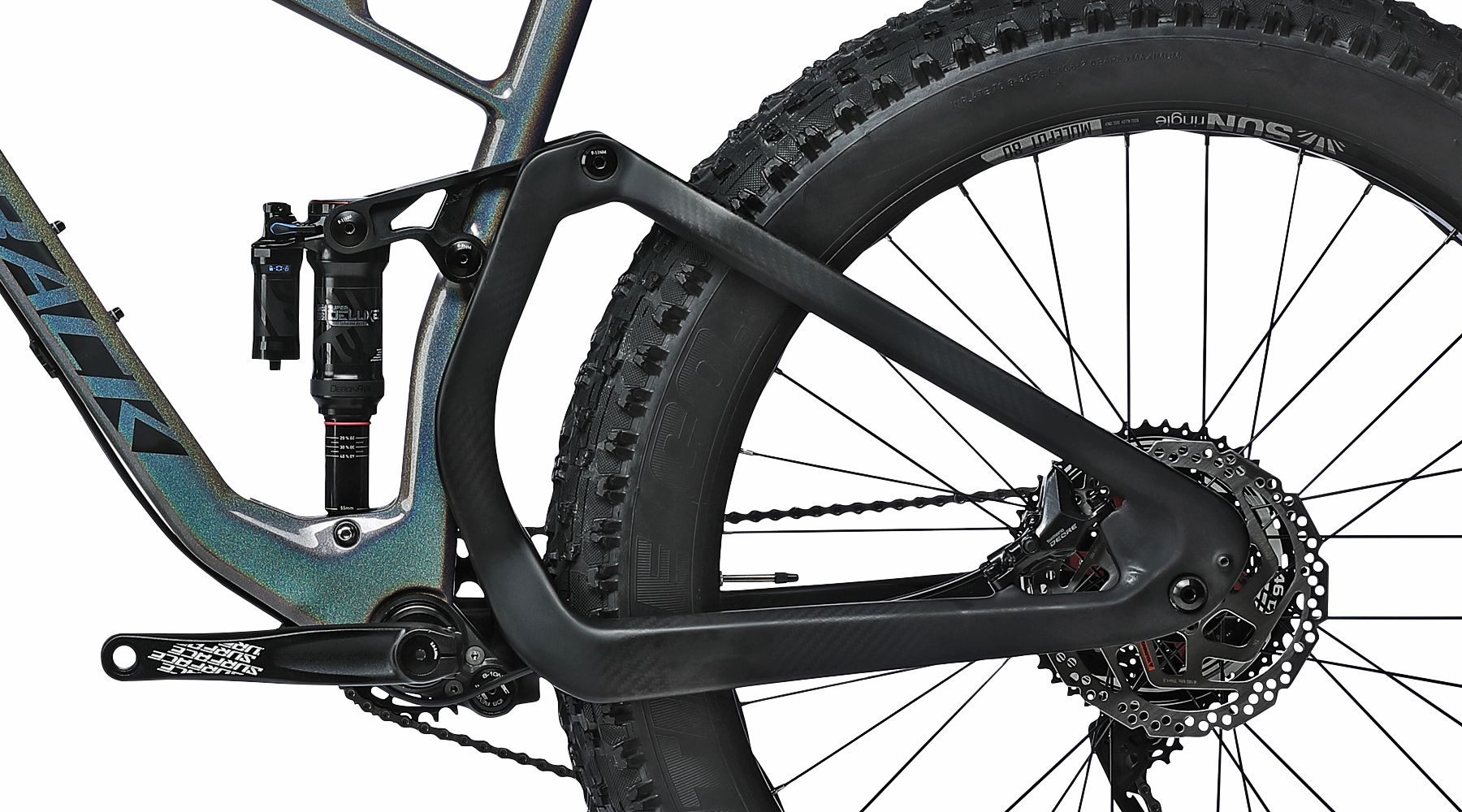

CARBON FRAME
The Synergy frame consists of a Carbon front triangle married to a carbon rear triangle via short concentric suspension linkages. This means that the Synergy is light for a Fat full suspension, as well as being durable enough to ride every day - on any terrain. It also means that Synergy has very little flex in the frame - for a positive pedaling feel.

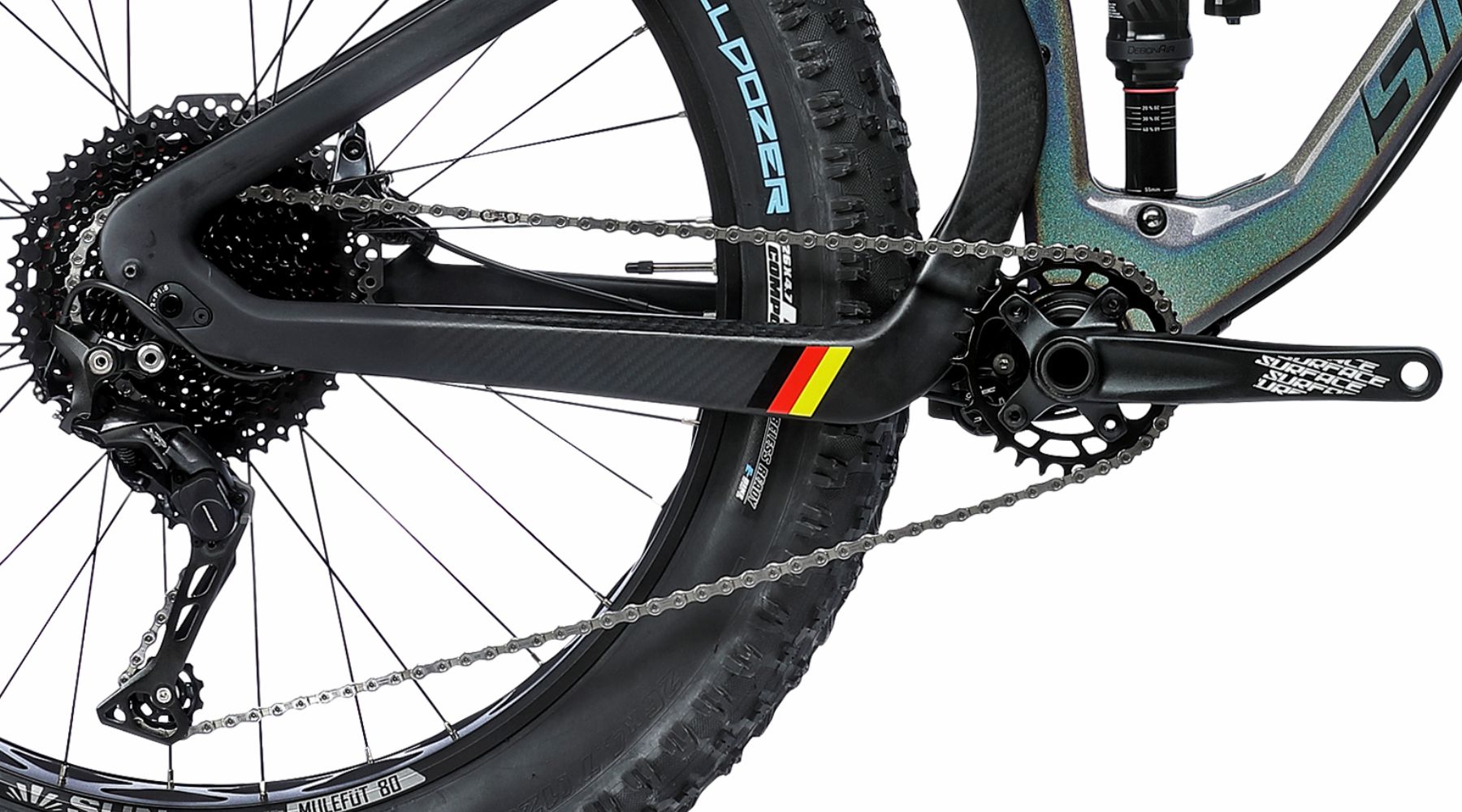

DRIVETRAIN
A durable SRAM 12 speed wide range drivetrain offers plenty of gears to take you both up, down and all around on your Synergy, as well as making for reliable, crisp shifting in even the worst conditions.
DROPPER-POST
Synergy comes as standard with a normal seatpost, but if you should want to install a dropper, compatibility means that you can easily add an internally routed dropper post. The cable enters the frame from behind the seat tube.

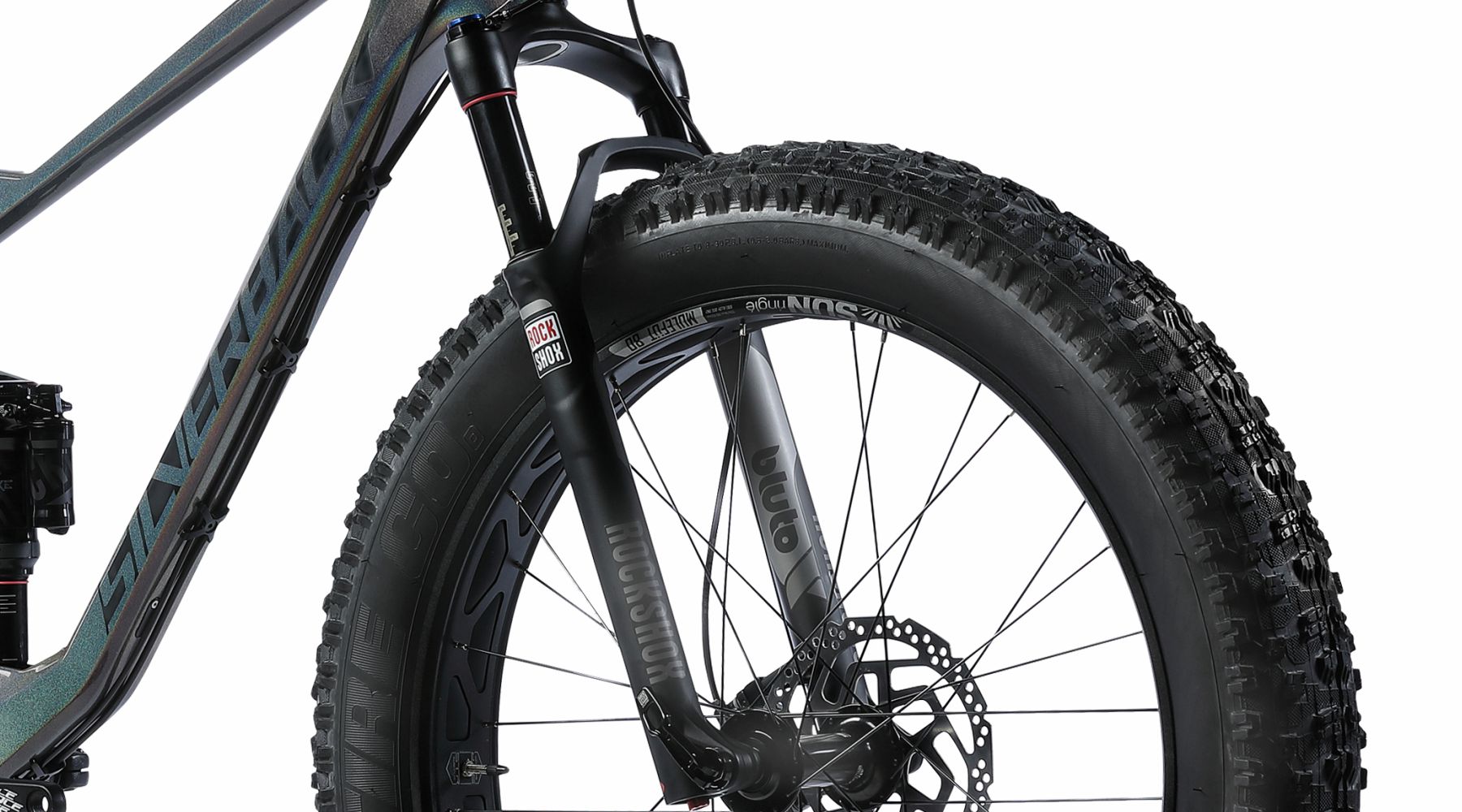

ROCKSHOX FAT BIKE SUSPENSION FORK
A Rockshox Bluto with 120mm of travel, is the perfect pairing with the IDS rear suspension on the Synergy. The Rockshox Bluto fork also features a thru axle, for maximum stiffness - meaning more accurate steering, and the suspension works better with less torsional flex on the chassis.
GEOMETRY
Synergy Fat's geometry is designed for trail use. The rider is placed in a balanced position, that is also pedaling efficient. The head angle on the Synergy is slightly steeper than on modern trailbikes, this is to assist steering the Fat wheel, to improve handling, and to make the bike feel nimbler and more responsive.

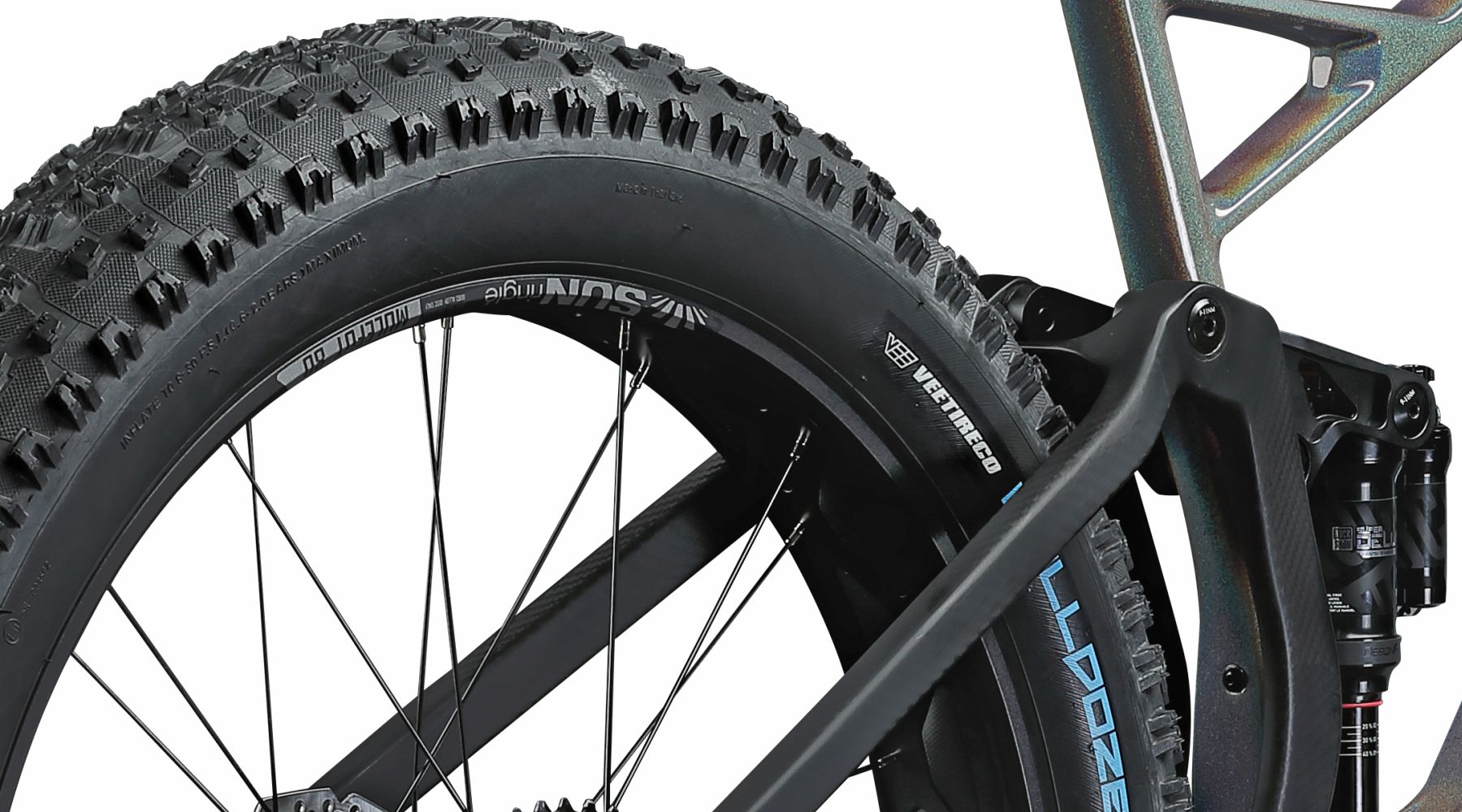

WHEELS
SUNRingle Mulefut 80SL wheels are surprisingly light for big wheels, and tubeless ready making setups a breeze. These are the benchmark for fatbike wheelsets, and manufactured to deal with the varied conditions that these bikes are ridden in.
-
Specification
![drop-down-arrow-icon-speedlab]()
-
Size chart & Geometry
![drop-down-arrow-icon-speedlab]()
FIND YOUR FIT.
Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.GEOMETRY.
map type(mm unless specified) S M L Rider height(cm) 160-173 170-180 180-192 Rider inseam(cm) 72-78 77-81 81-87 A Seat tube c/t 400 450 505 B Seat tube angle 74 74 74 C Head tube angle 69.5 69.5 69.5 D Top Tube 570 600 630 E Reach 399 427 454 F Chainstay length 445 445 445 G bb height 342 342 342 H head tube length 100 110 120 I stack 595 604 614 J standover 816.6 814 817 K Wheelbase 1104 1131 1166 -
