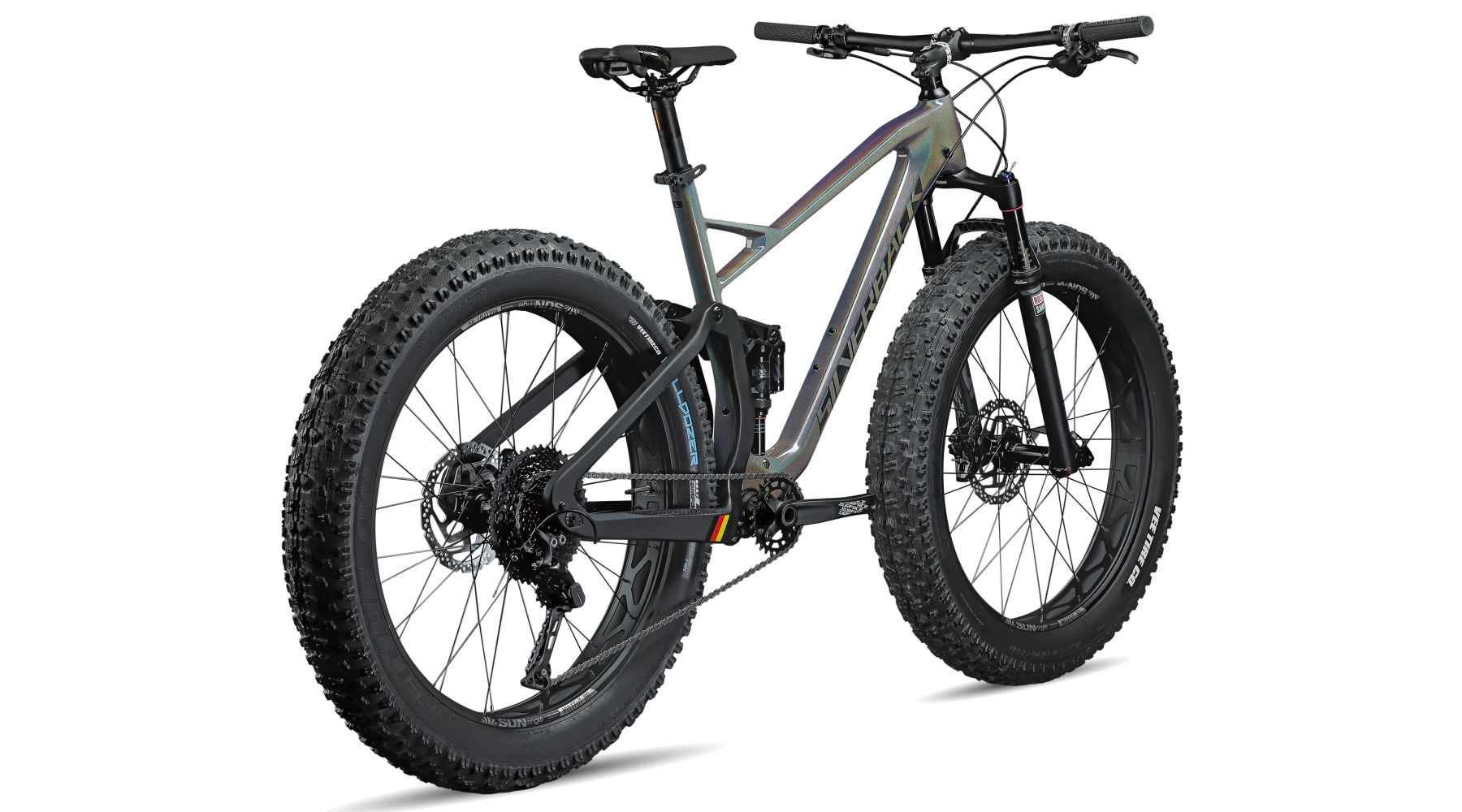

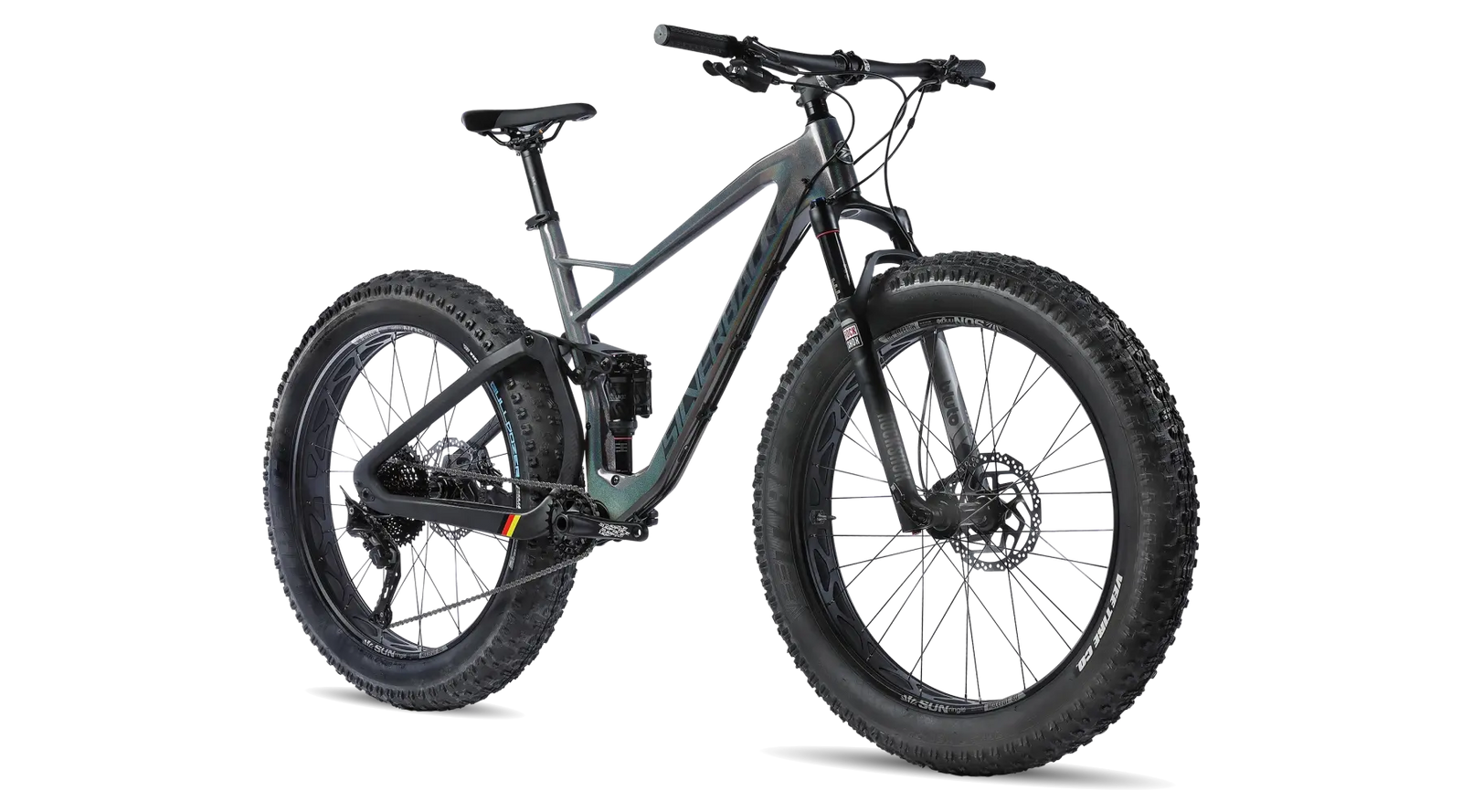

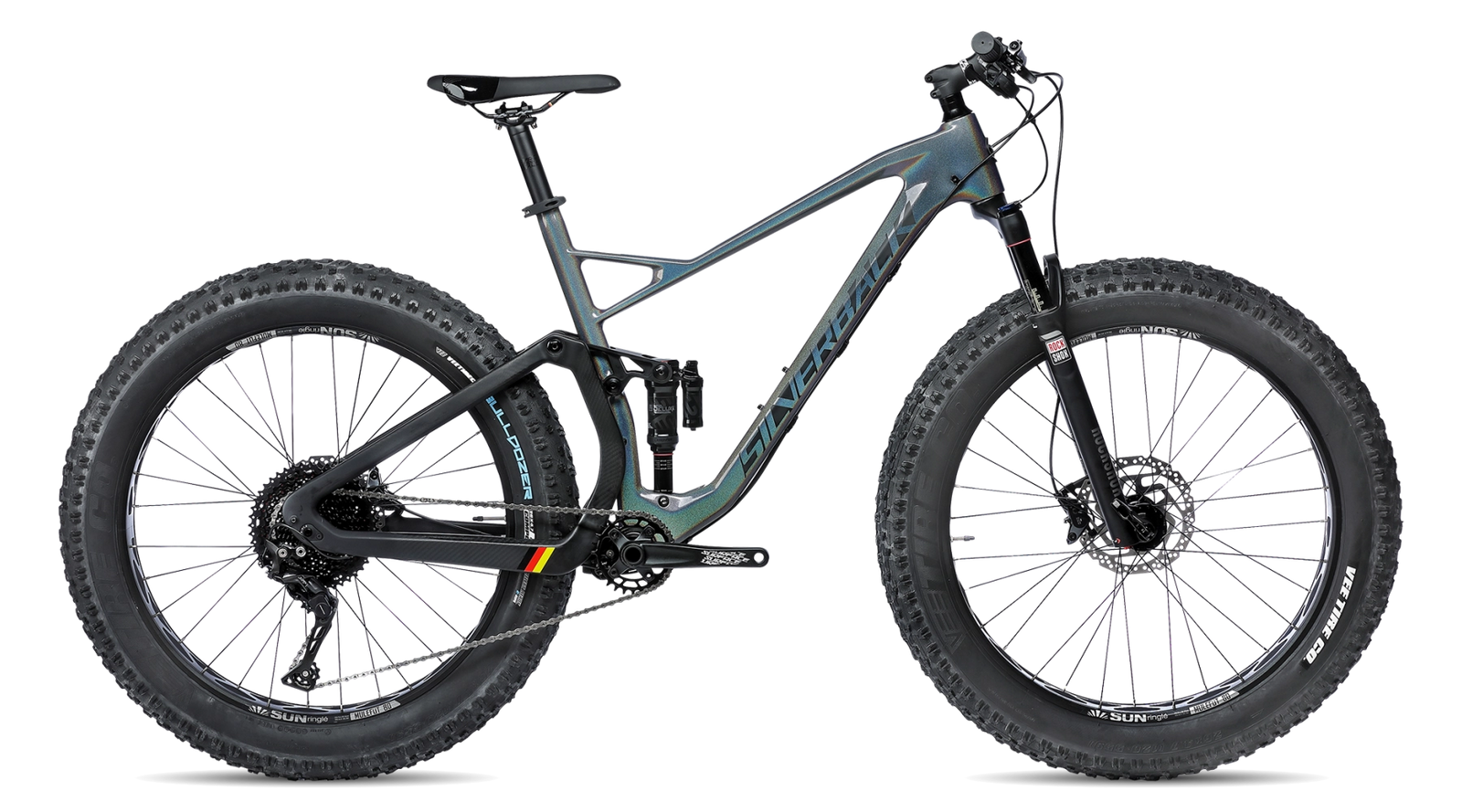

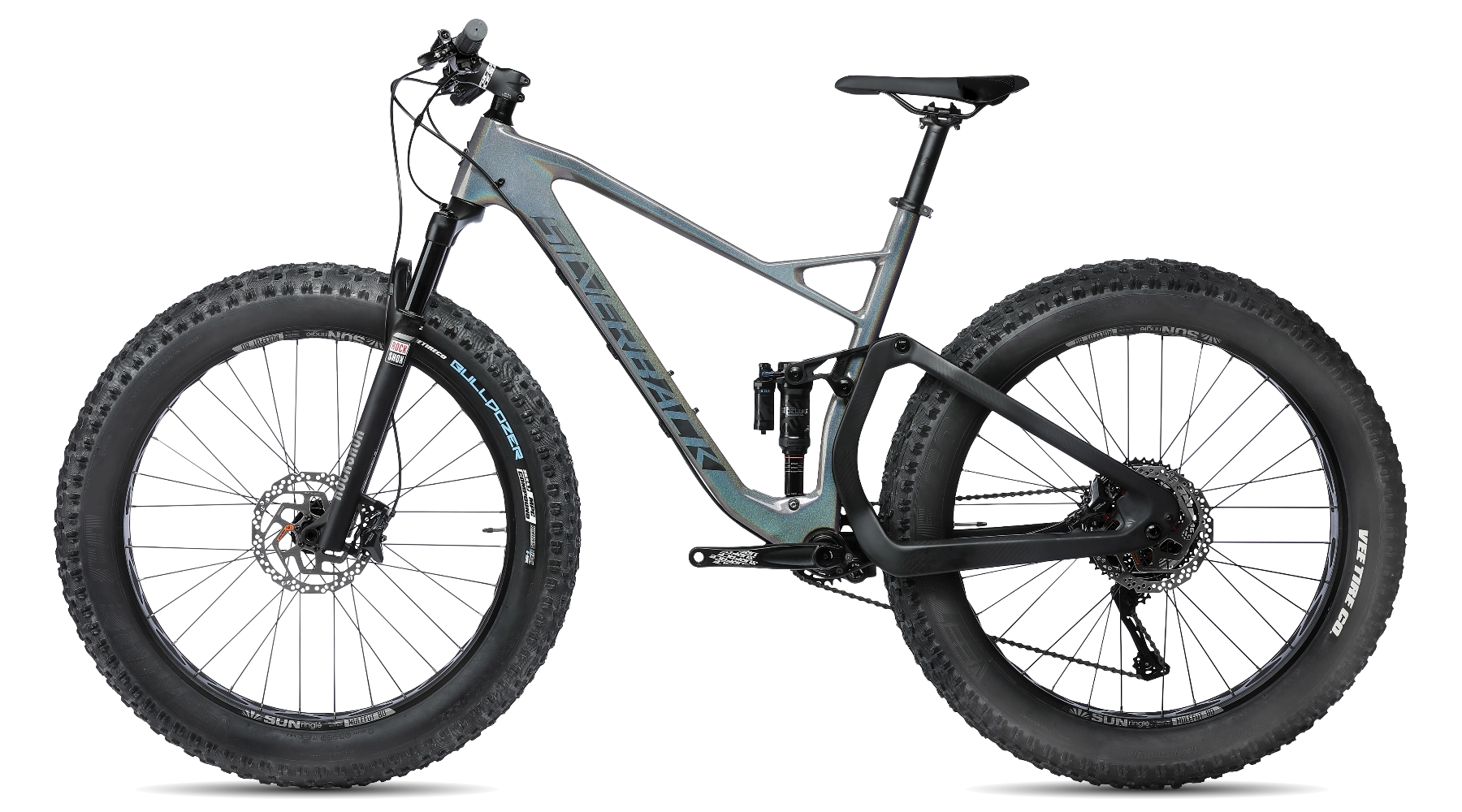

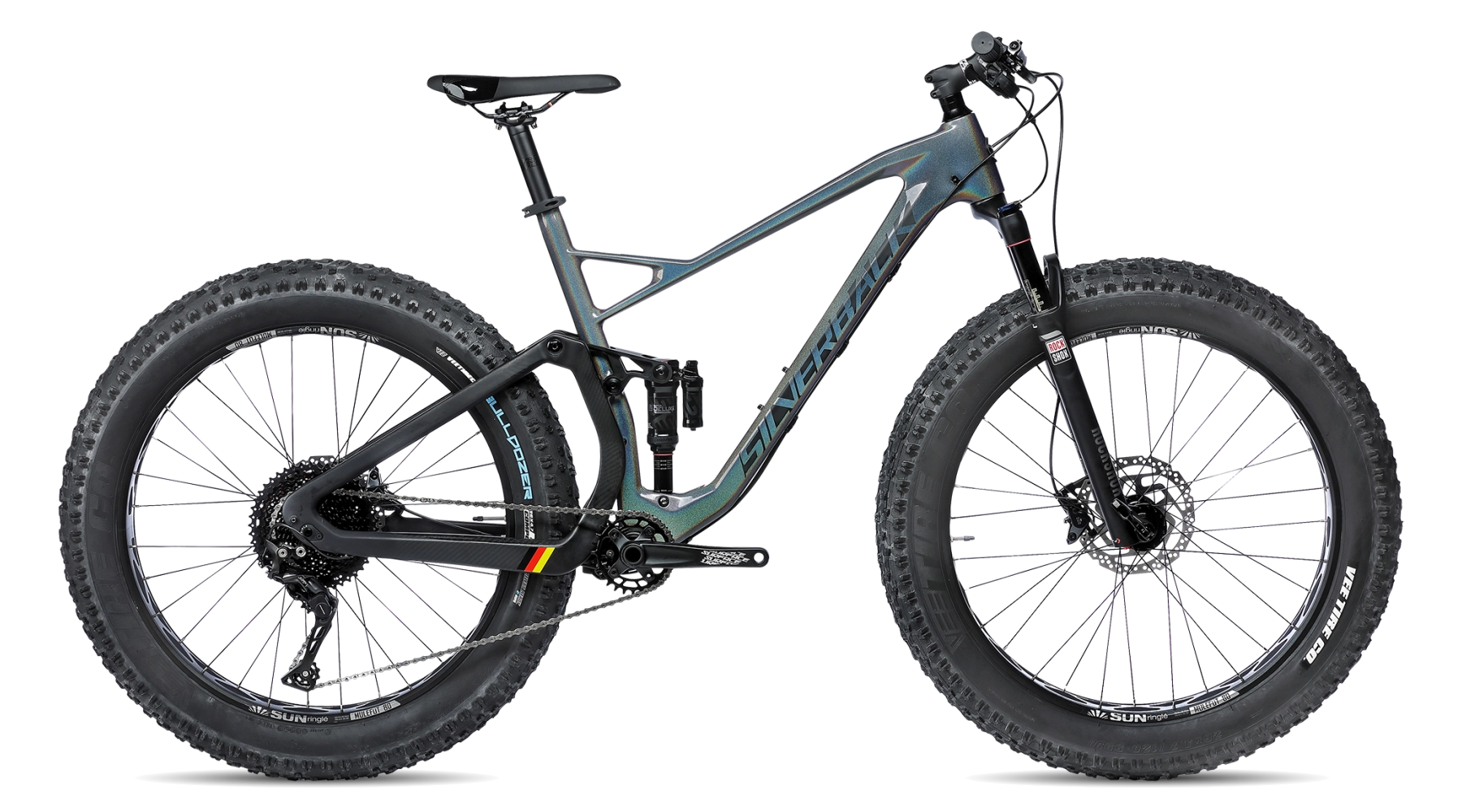

Synergy Fat

Name: Synergy Fat
Brand: Silverback
SKU: 6097000446532
Price: 3699.0 EUR
Availability: InStock

€3.699

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

4.85 13 reviews

Size:

Color: Rainbow Pearl

PICKUP FROM STORE

SHOP OUR HQ STORE
Ohmstrasse 18 72622
NuertingenGermany
+49 7022 9 777 818

SHIP TO HOME

SIMPLE ASSEMBLY

Complete your ride:

Speedkit Pannier Racks CL - 420Q

Garmin Varia RTL516 Radar Tail Light

14 DAY RETURN

2 YEAR WARRANTY

OWNERS MANUAL

hanger-21

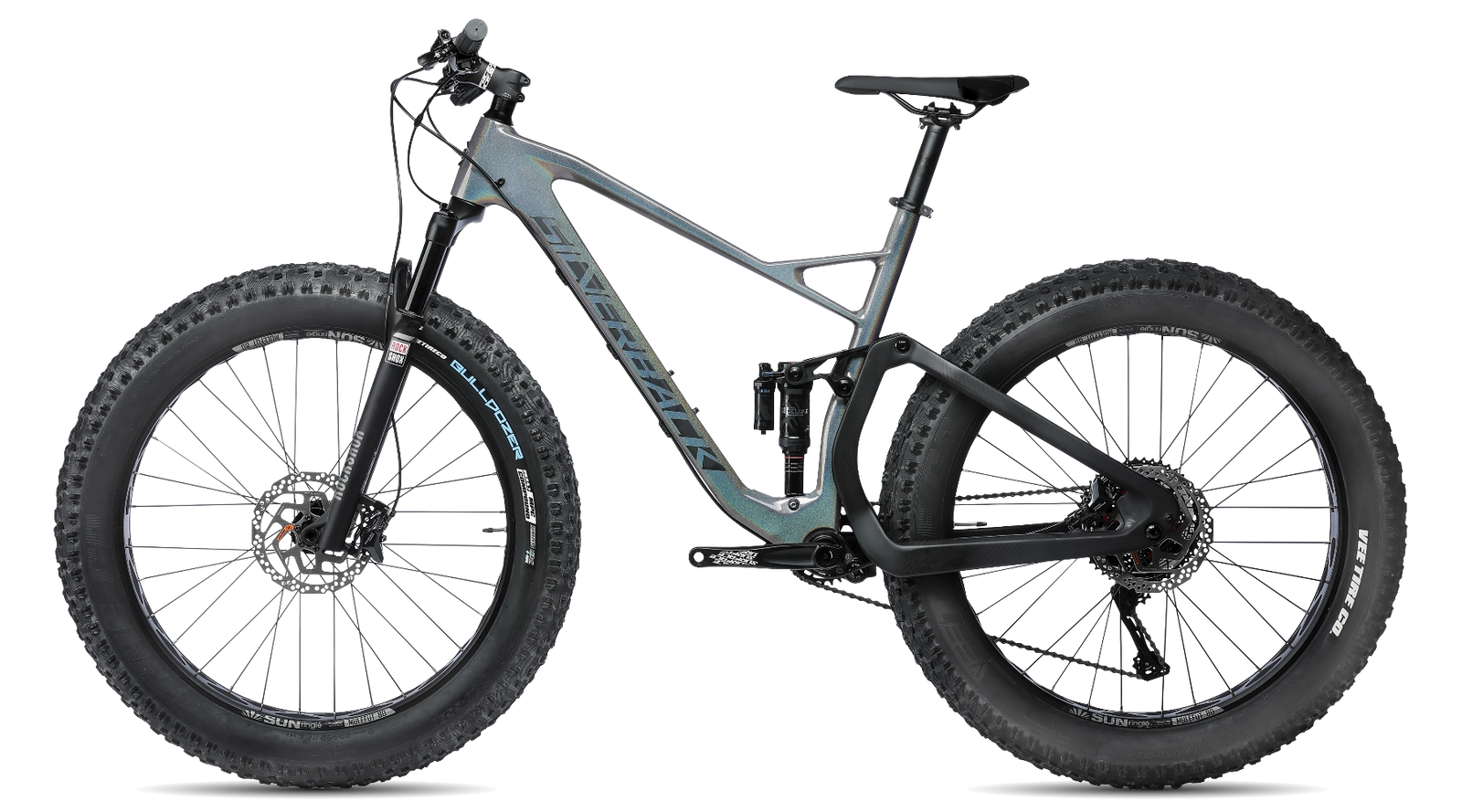

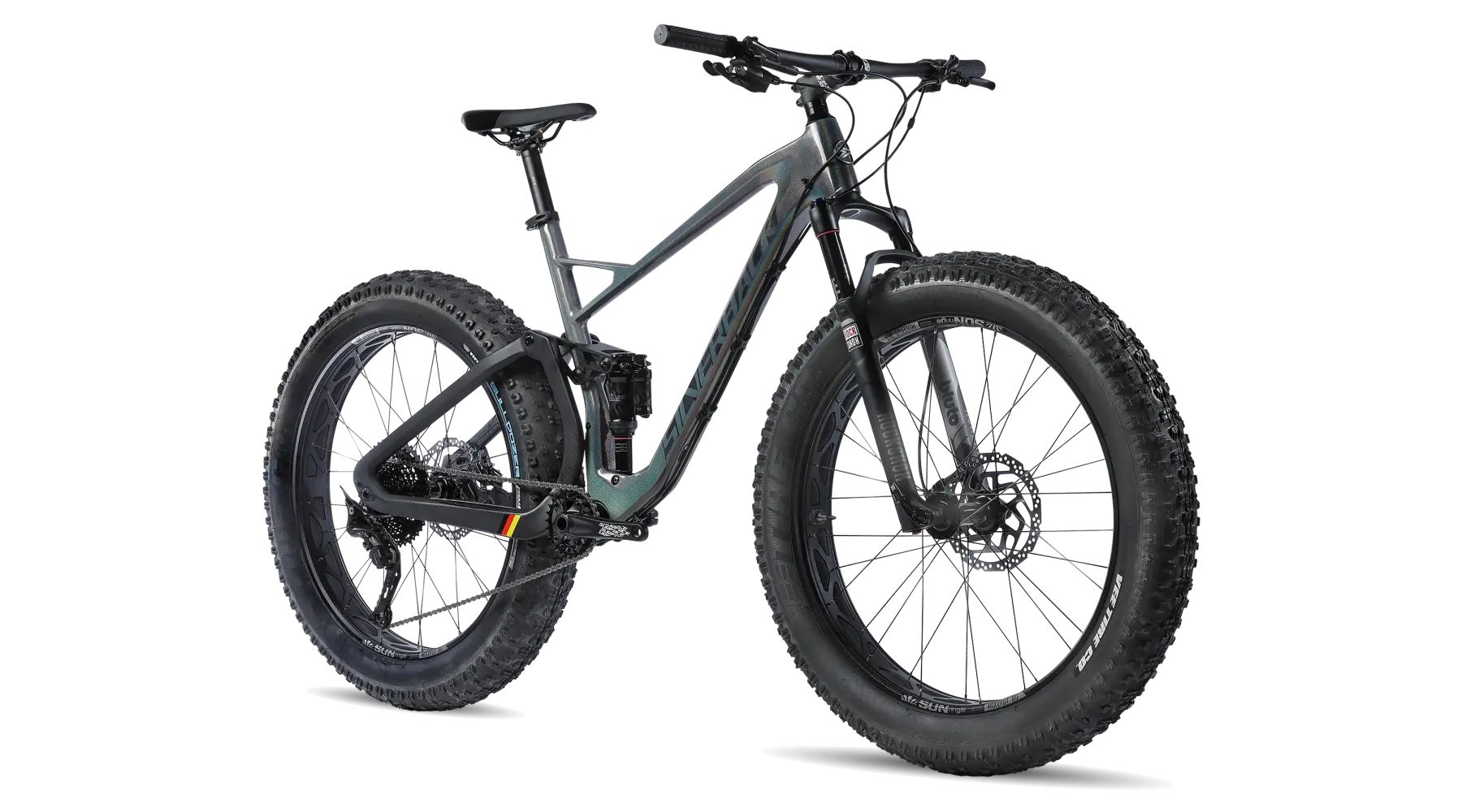

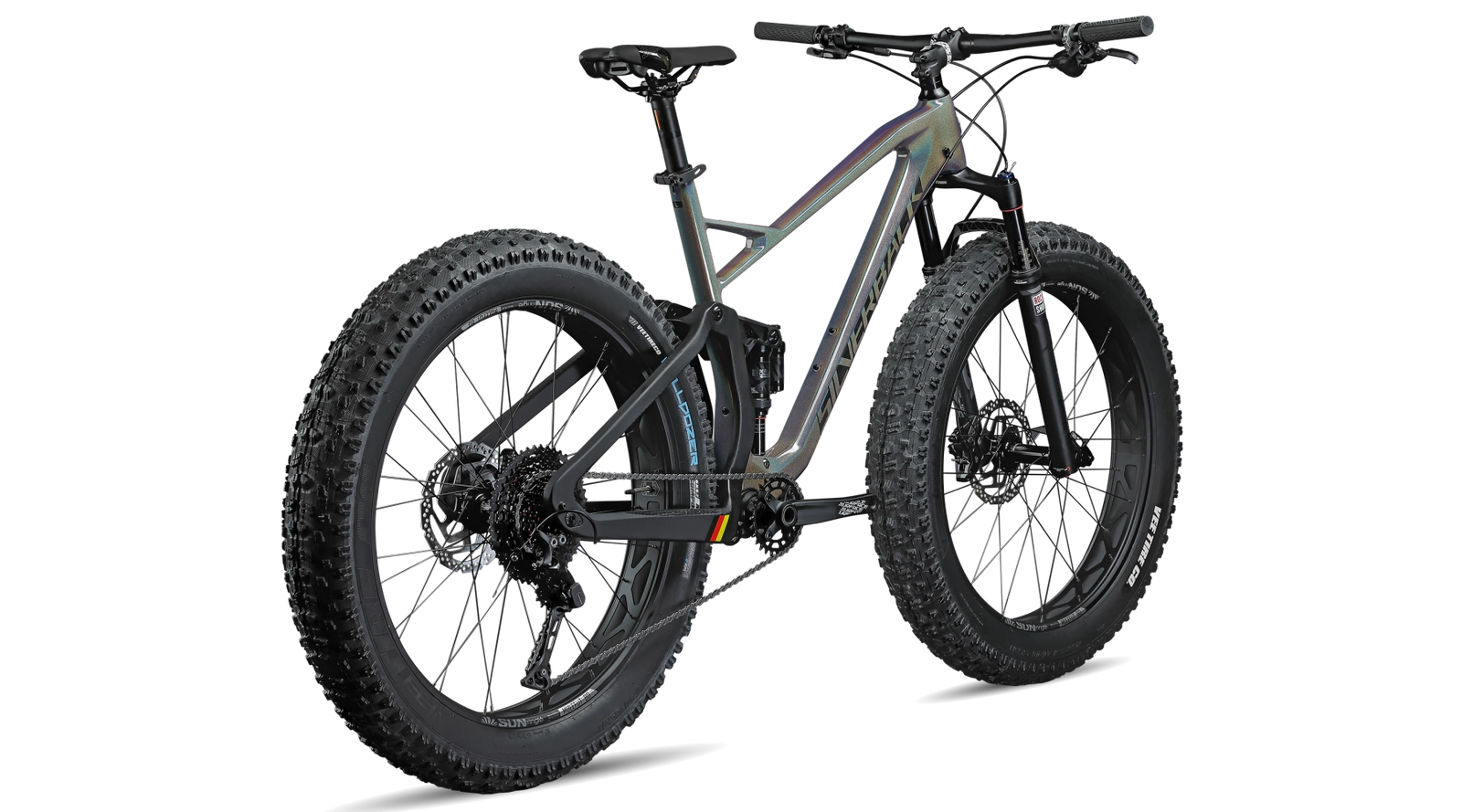

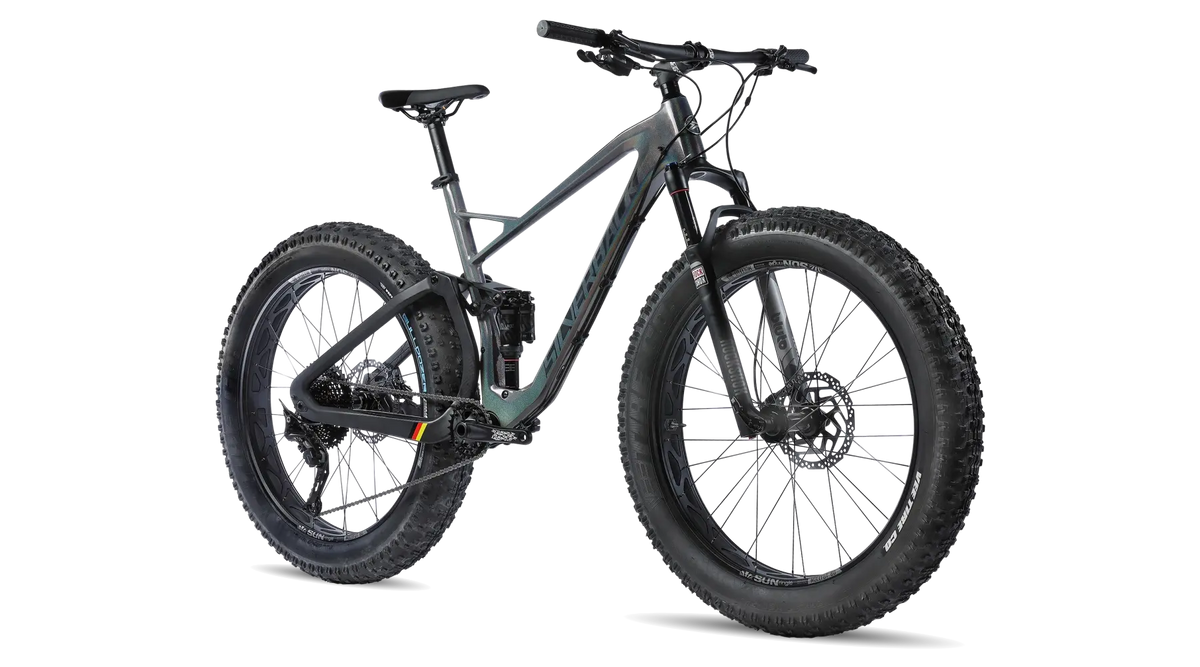

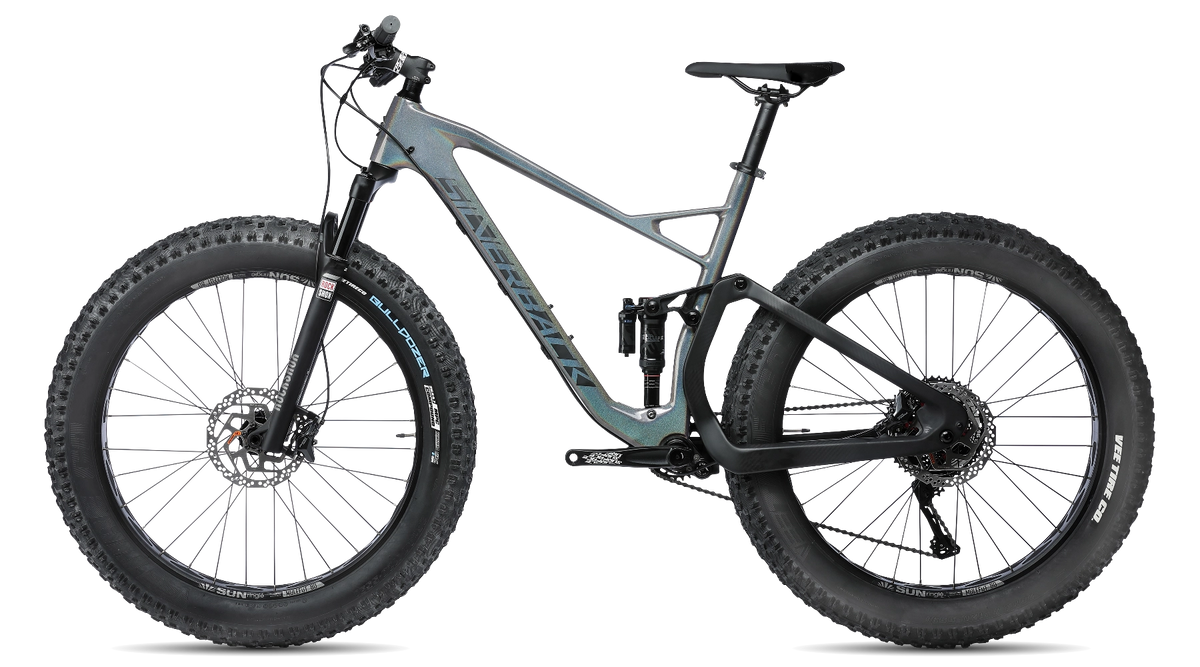

Synergy Fat

€3.699,00

Add to cart

DUAL SUSPENSION CARBON FATBIKE

Embrace every condition, don't let even the snow keep you from a good rip on your bike! Synergy Fat gives you true, uncompromised performance in a full-suspension carbon fatbike. This full carbon suspension frame frame has great strength, stiffness, durability and low weight as its core. The bike uses 120mm of front suspension, while the IDS Revo rear suspension has 110mm of plush, responsive and predictable travel to attack the trails with speed and precision.

At a Glance

SB Carbon Full suspension frame, IDS, 110mm travel
Rockshox Bluto 120 mm suspension fork
Rockshox rear shock, Custom Tuned
Shimano MT500 Hydraulic Disc Brakes
VEE Tire Bulldozer 26x4.7", Foldable , Tubeless Ready
SUNRingle MuleFut SL80 tubeless ready rims
Weight: 14,8kg

TECH HIGHLIGHTS

DUAL SUSPENSION CARBON FAT MOUNTAIN BIKE.

IDS SUSPENSION SYSTEM

IDS is Silverback's unique suspension technology. The lower linkage is concentric to the bottom bracket. This linkage uses large cartridge bearings to create a stiff and strong attachment point to the rear triangle.

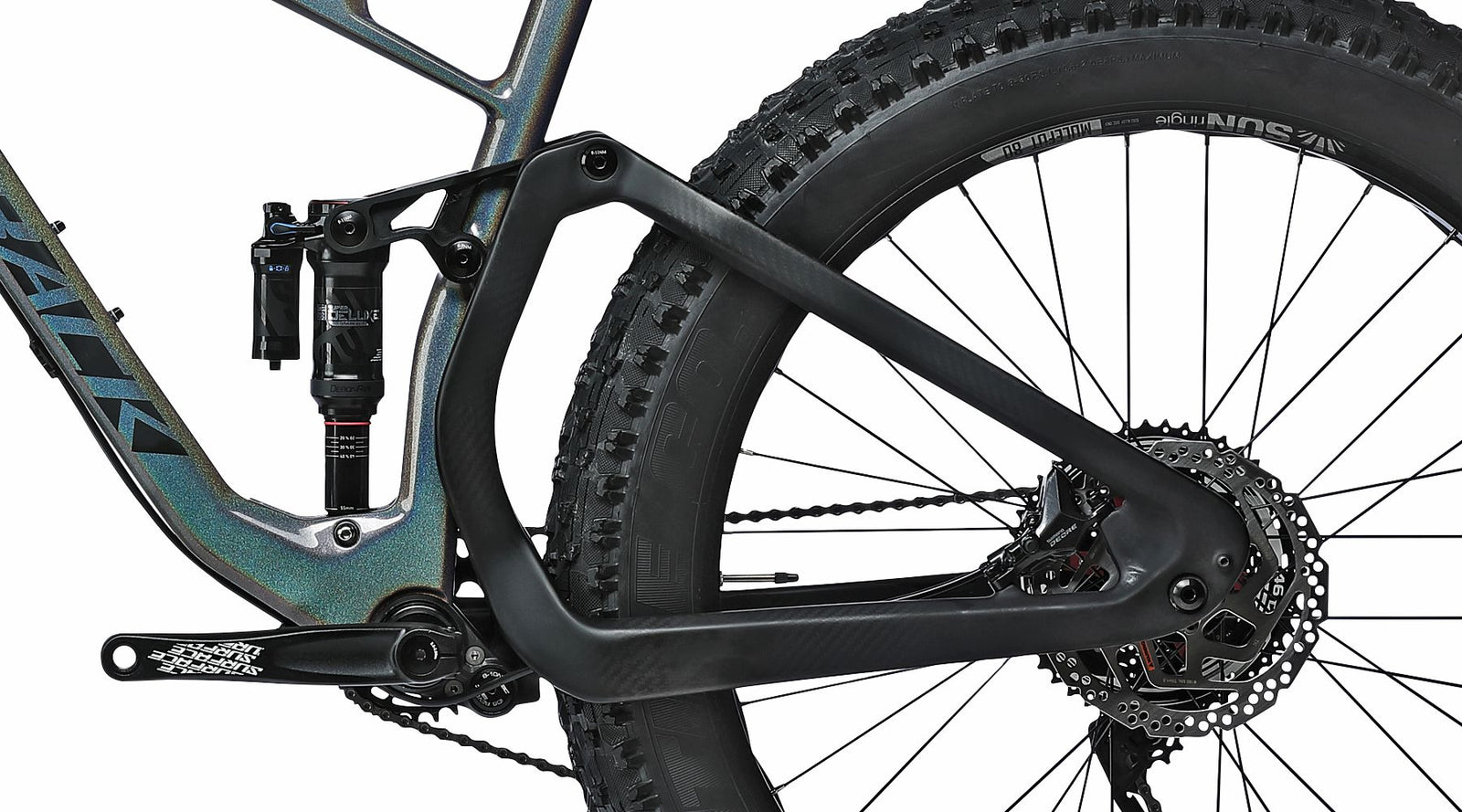

CARBON FIBER FRAME

The Synergy frame consists of a Carbon front triangle married to a carbon rear triangle via short concentric suspension linkages. This means that the Synergy is light for a Fat full suspension, as well as being durable enough to ride every day - on any terrain. It also means that Synergy has very little flex in the frame - for a positive pedaling feel.

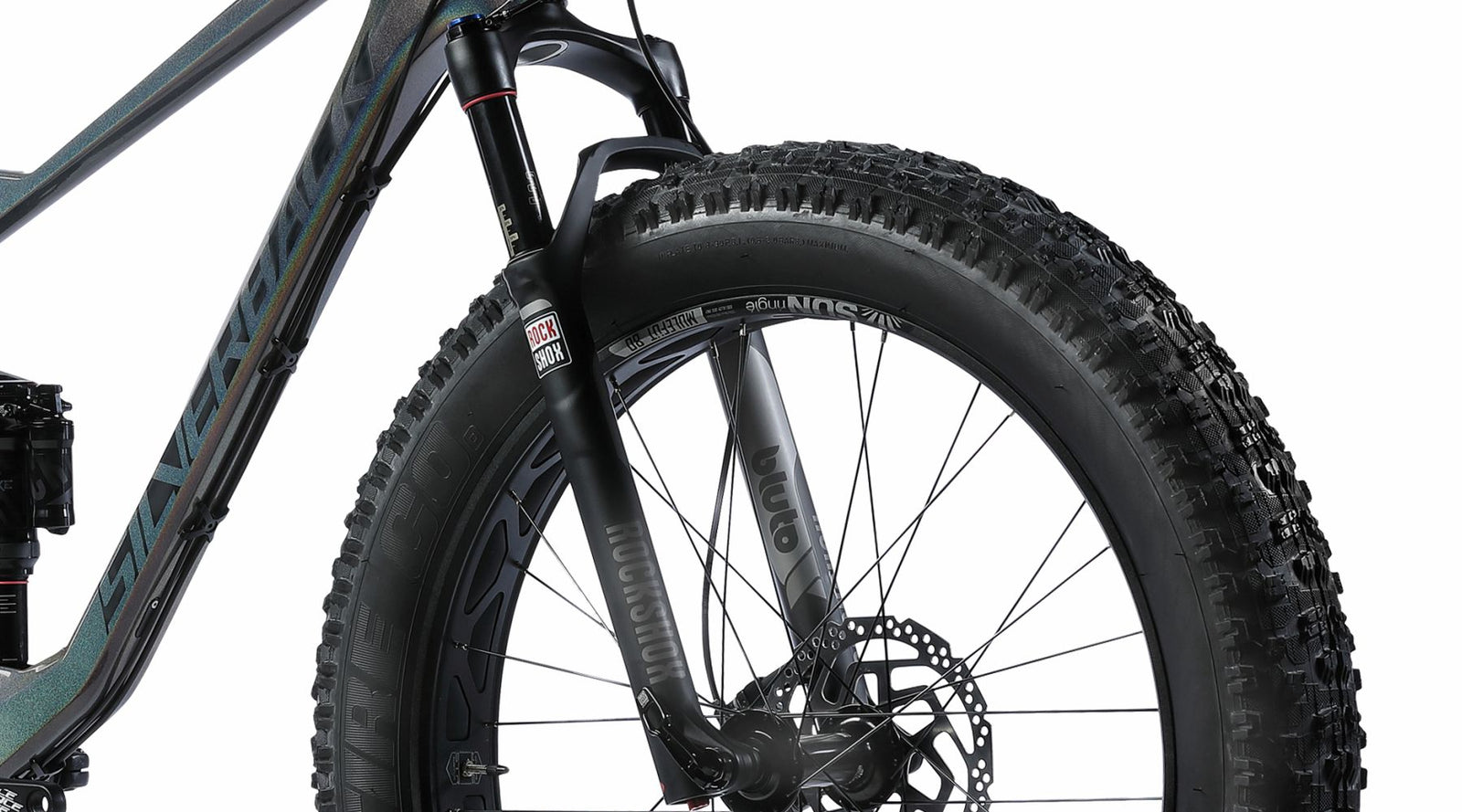

ROCKSHOX FATBIKE SUSPENSION FORK

A Rockshox Bluto with 120mm of travel, is the perfect pairing with the IDS rear suspension on the Synergy. The Rockshox Bluto fork also features a thru axle, for maximum stiffness - meaning more accurate steering, and the suspension works better with less torsional flex on the chassis.

FAT WHEELS & TYRES

SUNRingle Mulefut 80SL wheels are surprisingly light for big wheels, and tubeless ready making setups a breeze. These are the benchmark for fatbike wheelsets, and manufactured to deal with the varied conditions that these bikes are ridden in.

ANTI SQUAT VALUE

This system also uses a relatively high anti-squat value, that is optimized to complement dual and single chainring setups ensuring that power transfer remains efficient and direct. The upper linkage design creates a progressive leverage ratio that results in great small bump sensitivity as well as large impact absorption.

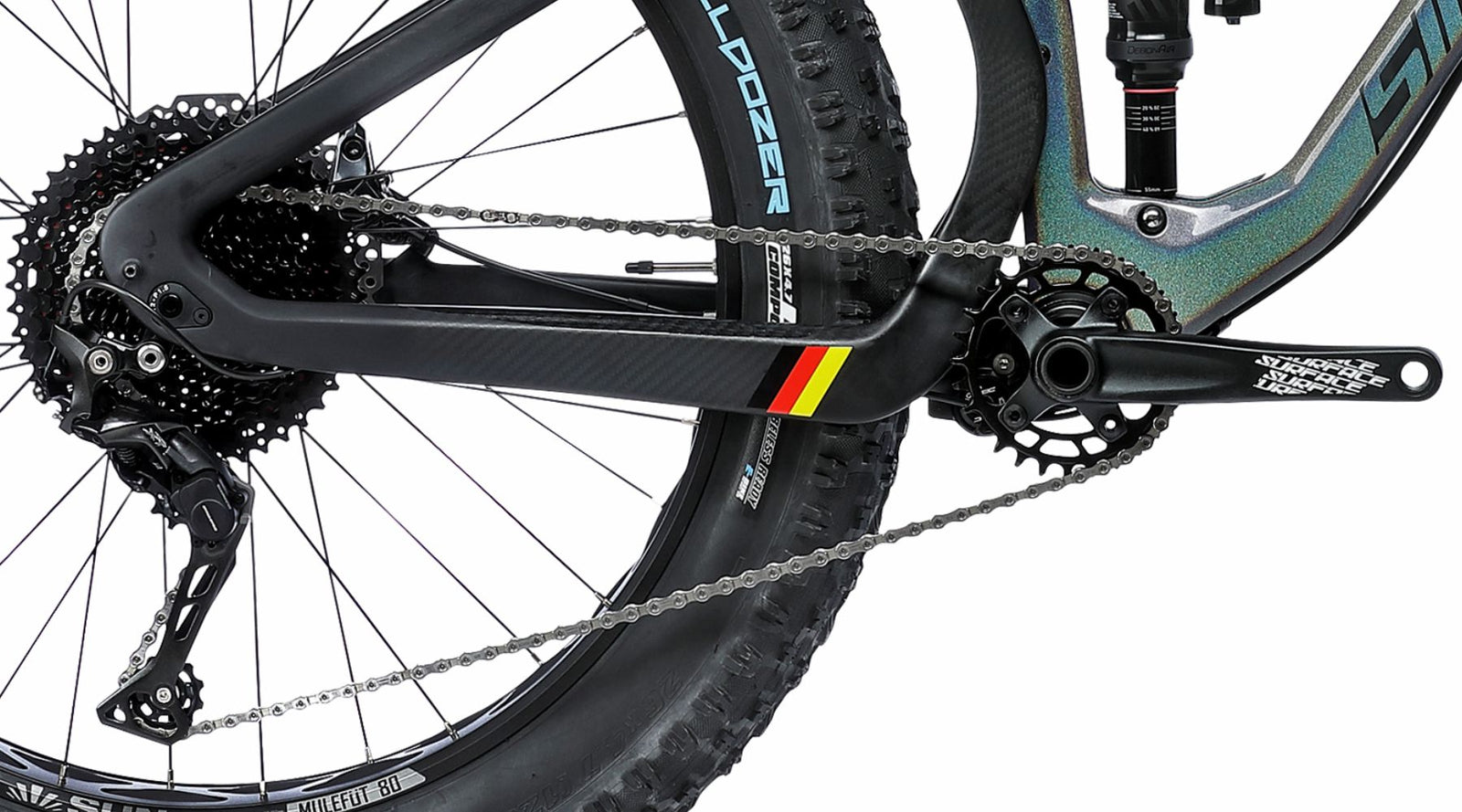

DRIVETRAIN

A durable SRAM 12 speed wide range drivetrain offers plenty of gears to take you both up, down and all around on your Synergy, as well as making for reliable, crisp shifting in even the worst conditions.

HYDRAULIC DISC BRAKES

Delivery plenty of stopping power, improved control through technical terrain and more reliable in multiple weather conditions

DROPPER-POST

Synergy comes as standard with a normal seatpost, but if you should want to install a dropper, compatibility means that you can easily add an internally routed dropper post. The cable enters the frame from behind the seat tube.

GEOMETRY

Synergy Fat's geometry is designed for trail use. The rider is placed in a balanced position, that is also pedaling efficient. The head angle on the Synergy is slightly steeper than on modern trailbikes, this is to assist steering the Fat wheel, to improve handling, and to make the bike feel nimbler and more responsive.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

SB Full Suspension 26'' Carbon frame, Tapered1-1/8"-1.5" Headtube, 1 in 3 Concept rear triangle with IDS Revo Alloy linkages using 197 x 12mm Thru Axle Integrated Dropouts, Replaceable Alloy Hanger, X-Guide Cable management System

Headset

Token TK035A-15 Sealed Bearing, IS42/28.6 IS52/40

Frame Axle Spacing

197x12mm

Frame Axle Specification

227x12mm P1.75

Hanger Type

HANGER 21

SUSPENSION

Fork

Rockshox Bluto 120 mm, 15X150mm, Air

Fork Travel

120 mm

Rear shock

Rockshox RT Custom Tuned

Rear Suspension Travel

110 mm

Shock Mounting

Body: Trunnion, M10x54mm
Shaft: Standard, 8x20mm

Eye-to-Eye x Stroke

185 x 47.5 mm

WHEELS

Wheelset

SUNringlé Custom Wheelset

Hubs

Front Hub: Alloy Sealed Bearing, 150x15mm Thru Axle, 6 bolt
Rear Hub: Alloy Sealed Bearing, 197x12mm Thru Axle, 6 Bolt

Rims

SUNringle Mulefut 80SL, Tubeless Ready

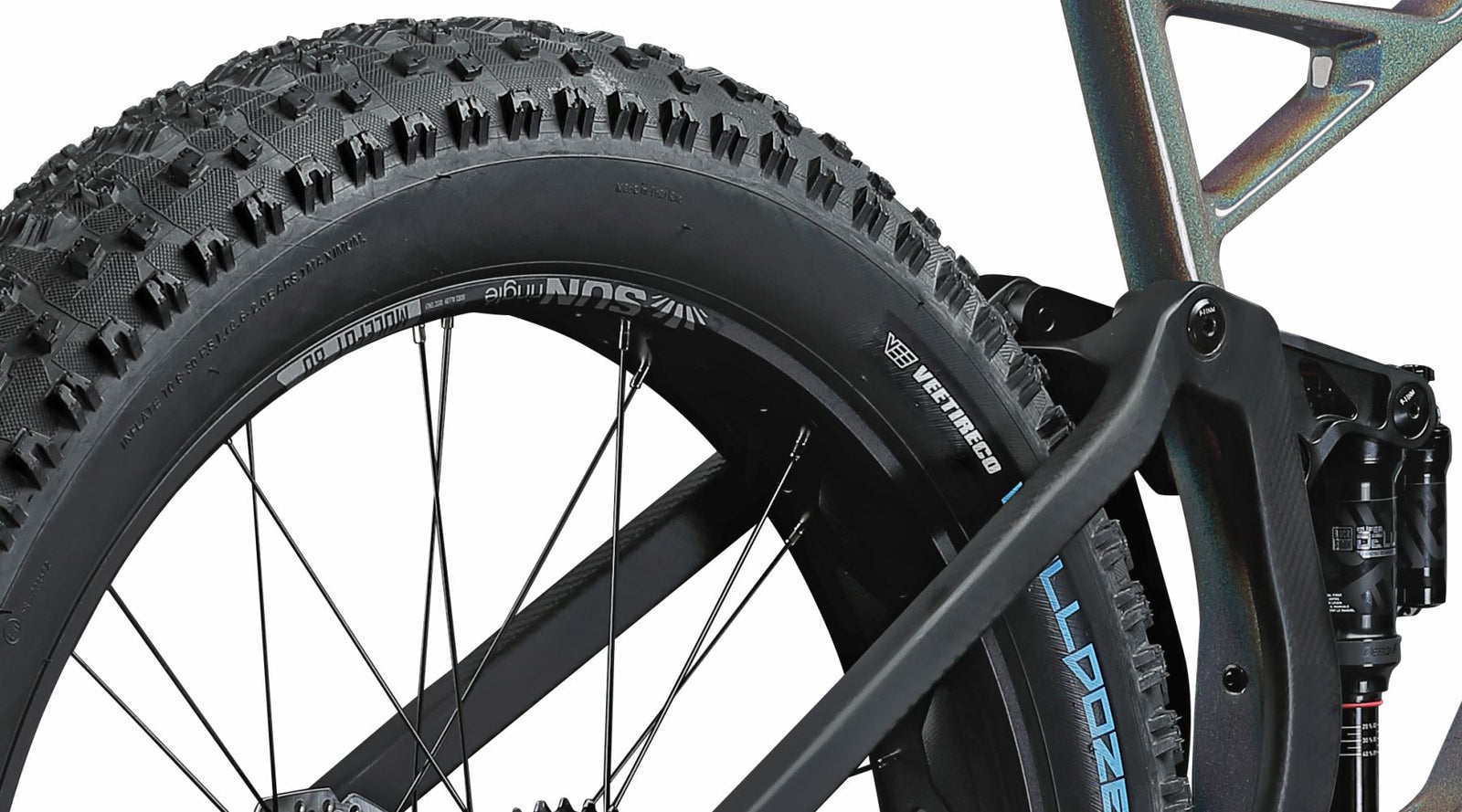

Tyres

VEE Tire Bulldozer 26x4.7" Tubeless Ready tyres

Max Tyre Size

5.0"

DRIVETRAIN

Crankset

Alloy Fat Bike Crank

Max Chainring Size

38 T

Bottom Bracket & Type

BSA68

Shifter(s)

SRAM GX Eagle Trigger

Rear Derailleur

SRAM GX Eagle, 12 speed

Cassette

SRAM XG-1275 (10-52)

Chain

SRAM GX Eagle 12 speed

BRAKES

Brakes

Shimano MT500 Hydraulic Disc, Resin Pads

Rotors

F: Shimano Deore SM-RT56 180mm, 6 Bolt
R: Shimano Deore SM-RT56 160mm, 6 Bolt

COCKPIT

Grips

Surface ergo

Handlebar

Sector Alloy, Ø31.8mm, 780 mm

Stem

Sector Alloy, 31.8mm

Saddle

Sector Ergo, Steel Rails

Seat Post

Sector Alloy, 30,9 mm

Seatpost Clamp

Surface alloy

Pedals

Not included

WEIGHT

Bike Weight

14.8 kg

RIDER WEIGHT LIMIT

120 kg - combined weight of bike and rider (including all kit).

FAQ

If I wanted to route my cables internally, can I drill a tiny whole on the frame to fit the cables throug?

No, drilling wholes in your frame will void your warranty.
What pedals does this bike come with?

Standard steel flat pedals.
What is the weight limit on this bike?

120kg

OTHER MODELS IN THE SERIES

€1.199 €1.399

SE:SERIES FAT ADVENTURE

Hardtail | Fat Bike | Alloy

Alloy Fork
26" x 4.7" Wheels
1x11 Speed Shimano
15.62kg

€3.699

SYNERGY FAT

Dual Suspension | Fat Bike | full Carbon

120/110mm Travel
26" x 4.7" Wheels
1x12 Speed SRAM
14.8kg

€4.499

S-ELECTRO DIAMOND FAT EXPLORER (GREY)

Hardtail | E Fat | Alloy

120 mm fork
26" x 4.7" Wheels
1x12 Speed SRAM
EP-8 Shimano Motor
85Nm Torque
720Wh Battery
24.8 kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S	M	L
	Rider height(cm)	160-173	170-180	180-192
	Rider inseam(cm)	72-78	77-81	81-87
A	Seat tube c/t	400	450	505
B	Seat tube angle	74	74	74
C	Head tube angle	69.5	69.5	69.5
D	Top Tube	570	600	630
E	Reach	399	427	454
F	Chainstay length	445	445	445
G	bb height	342	342	342
H	head tube length	100	110	120
I	stack	595	604	614
J	standover	816.6	814	817
K	Wheelbase	1104	1131	1166
