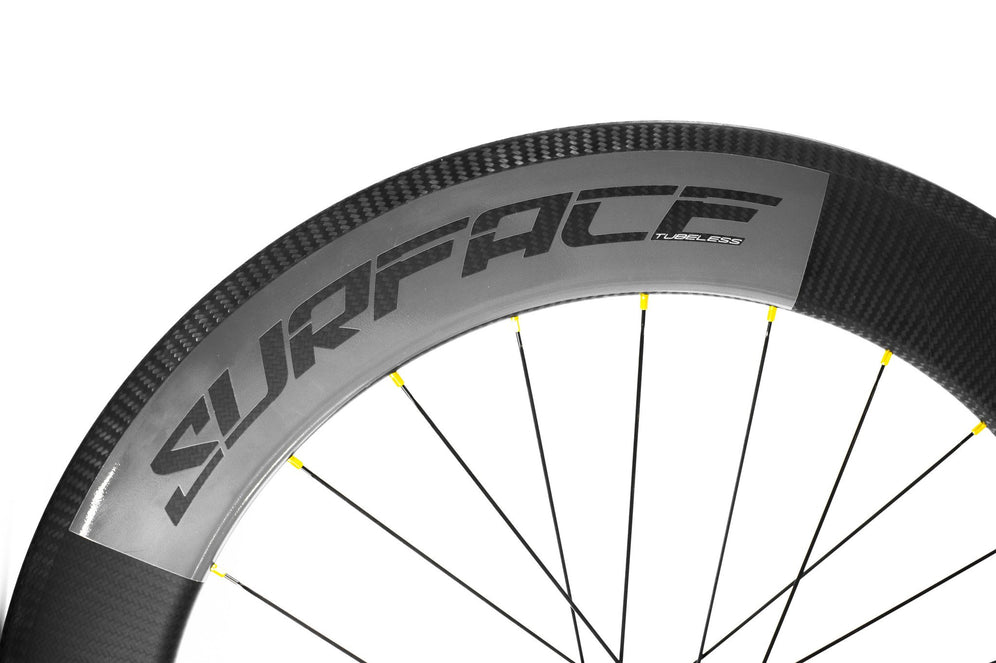

The Surface Elite 80 wheelset is the perfect aftermarket set for your Road, Time Trial (TT) or Tri bike.
Lightweight, deep dish wheelset, the Surface Elite 80 is made from 3K Twill weave Toray carbon Fiber, delivering an impact resistant, stress dissipating wheel that is very stiff.
More than just performance upgrades, the Elite 80 adds heaps of style to your bike.
Tubeless ready.
The Surface Elite 80 wheelset features straight pull DTSwiss 240 hubs, 100mm OLD 9mm QR front and 130mm OLD, 9mm QR rear.

Stiffness optimised rim profile stress disipating structural ply layup impact resistant surface ply layup

Size	700C ID 17mm OD 26mm Depth 80mm 622mm ETRTO 20H F / 24H R
Rim material	Toray carbon, 3k twill weave
Rim Type	Symmetrical
Internal width	17.0mm
External width	26.0mm
Depth	80.0mm
Hole count	Front: 20h Rear: 24h
Tubeless	Yes
E-Bike	No
Valve	Presta
Tape	N/A
Wheel Weight	Front: 830g Rear: 955g
Wheelset Weight	1785g
ETRTO	622
Spoke Pattern Front	Front: 0-cross straight pull Rear: 2-cross straight pull
Hub	Front: dt swiss, 240s, 100mm old, 9mm qr Rear: dt swiss, 240s, 130mm old, 9mm qr
Brake Type	Rim brake, carbon surface
Freehub	DTSwiss 11spd Road
Recommended Tyre	Front: 700cx25c Rear: 700cx25c

What tyre width is recommended for this wheelset?
23c - 30c"

Can I use these wheels on a thru axle frame?
Yes but you will need to purchase thru axle end caps separately.

Can I use disc brakes on these wheels?
No, the hubs do not support disc brakes.

What are the freehub options?
The wheels are supplied with a Shimano HG freehub but other freehubs can be bought separately
