SE Series Fat 24

€599,00

Add to cart

Ride all year long with the SE-Series Fat 24! Sand, snow or mud, these large ‘Bulldozer’ tyres ‘truck’ over everything. Whether it is a relaxed ride on the beach or bombing down trails, the 4.0” tyres offers excellent grip when climbing or cornering.

At a Glance

6061 Alloy Fatbike specific 24" frame
Microshift 8spd rear derailleur
Microshift 8spd, 11-34t cassette
Silverback single speed crankset, 30T chainring
Silverback Alloy 24" fat specific, Rigid fork
Silverback custom tubeless wheelset
VEE Tire Bulldozer 24x4.0"
Cable-activated Disc Brakes

TECH HIGHLIGHTS

RIDE ANYWHERE AND EVERYWHERE, ALL YEAR LONG.

Ride all year long with the SE-Series Fat! Sand, snow or mud, these large ‘Bulldozer’ tyres ‘truck’ over everything. Whether it is a relaxed ride on the beach or bombing down trails, the 4.0” tyres offers excellent grip when climbing or cornering. The updated geometry, plenty of gear options on the 1x11 setup, an alloy rigid fork and Shimano Hydraulic disc brakes makes for the perfect weekend warrior Fatbike.

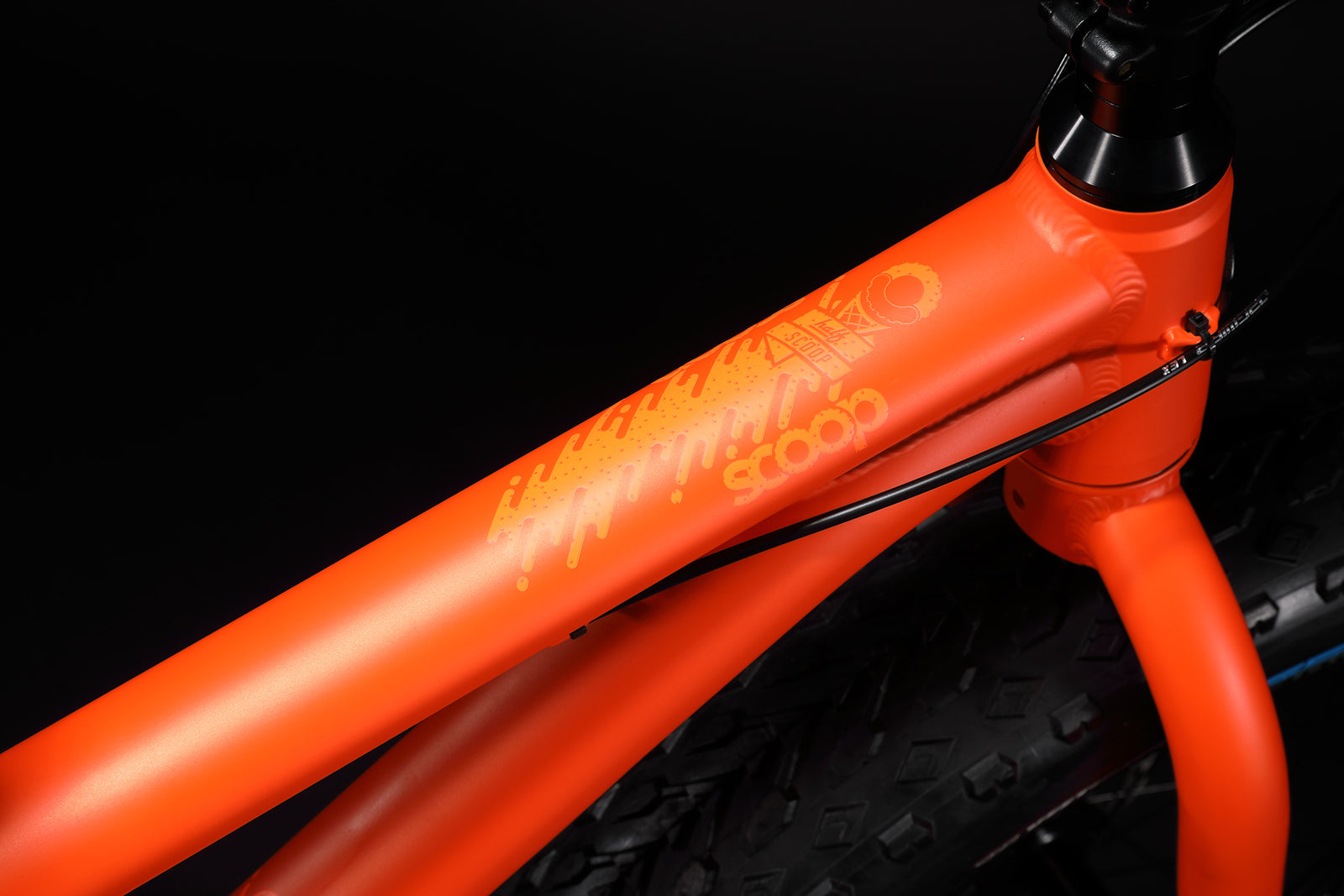

HYDRO FORMED ALLOY FRAME

SE-Series Fat features a brand new frame focused on the sport adventure market. The frame tubes are hydro-formed into complex shapes to increase strength and stiffness, minimising weight and excess material use. Geometry has been updated to make for bike that handles better over rough terrain, making for a very easy bike to ride.

YOUTH SPECIFIC GEOMETRY & FIT

The SE-Series Fat 24 is designed to feel confidence inspiring over rough and steep terrain so the rider can focus on having fun!

FAT WHEELS

SE-Series Fat is designed to run FAT 24" x 4.0" tyres with plenty of mud clearance. Bigger tyres can increase contact area and thus ride comfort, control and grip. SE-Series Fat wheels are pre-taped and tubeless ready.

MECHANICAL DISC BRAKES

SE-Series Fat comes with mechanical disc brakes. Disc brakes offer dependable all weather performance over rim brakes.

HYDRO-FORMED 6061 ALLOY FRAME

RACK, FENDER AND KICKSTAND MOUNTS

There is an integrated kickstand mount in the left rear chainstay. The addition of a kickstand is neat and uncomplicated. We suggest using the Speedkit kickstand for e-bikes and fatbikes. The disc Brake caliper mounted inside rear triangle to protect it from environmental damage, while also acting like a brace, improving strength around the dropout and kickstand mount. The frame features mounting points for a rear fender and pannier racks. SE-Series Fat can easily be set up as an adventure or touring bike.

SILVERBACK ALLOY RIGID FORK

The SE-Series Fat features a thru axle alloy rigid fork. Matchy-matchy colour and alloy tubing profiles. The fat wheels provide bump absorption so that even though a rigid fork, the bike does not feel harsh. A rigid fork is also virtually maintenance free, so great for peace of mind, remote adventures.

SELECTIVE INTERNALLY ROUTED FULL LENGTH CABLE HOUSINGS

Internal routed cables keeps the cockpit clean and neat. Rear brake housing is run externally for ease of setup and maintenance.

SHORT CHAINSTAYS

Short chainstays coupled with updated geometry means that the SE-Series Fat is more nimble through corners, yet retains overall stability.

TAPERED HEADTUBE

A Tapered headtube increases front-end stiffness and directly influences steering feel and precision. This also means that the SE-Series Fat range is compatible with all modern forks, if you would want to upgrade your suspension.

Detailed Specifications

SPECIFICATIONS.

FRAMESET

Frame

Aluminium Butted 6061 24", Tapered 1-1/8"-1.5" headtube, 197mm x 12mm Thru Axle Dropouts, BSA 100mm BB width

Headset

Semi Integrated ZS44/28.6 ZS56/40

Frame Axle Spacing

170x9mm

Axle Specification

Hanger Type

HANGER 31

SUSPENSION

Fork

Silverback Fat Bike Rigid fork, 24"

WHEELS

Wheelset

SURFACE Custom Wheelset

Hubs

F: 32H x 170mm, QR, 6-Bolt

R: 32H x 170mm, QR, HG 8-Speed, 6-Bolt Disc

Rims

Alloy, Single wall, 24"X80mm, 32H, Tubeless Ready.

Tyres

VEE Tire Mission Command 24x4.0", Foldable, 27Tpi

Max Tyre Size

4.0"

DRIVETRAIN

Crankset

Silverback Alloy, Fatbike Specific, 30t

Max Chainring Size

30T

Bottom Bracket & Type

BSA100

Shifter(s)

L: N/A
R: Microshift TS39-8, 1x8-Speed, Thumb-tap

Front Derailleur

N/A

Rear Derailleur

Microshift RD-M36S, 8-speed

Cassette

Microshift 8spd, 11-34T

Chain

8-speed

BRAKES

Brakes

Jak Cable-activated Disc

Rotors

Jak 160mm, 6-bolt

COCKPIT

Grips

SBC 134mm

Handlebar

Alloy, 660mm wide, Ø31.8MM

Stem

Alloy, Length: 60mm, Rise: 6°

Saddle

Youth

Seat Post

Alloy, Ø30.9mm

Seatpost Clamp

Alloy

Pedals

One Piece Alloy

WEIGHT

Bike Weight

14,4 kg

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).

FAQ.

What pedals does this bike come with?

Yes, this bike comes with Standard steel flat pedals in the box.
Is this bike compatable with a 1X drivetrain?

Yes.
What is the recommended pressure for these tyres?

Typically, fatbike riders use pressures in the 8PSI range for soft conditions, 12-15PSI for trail riding and 20-25PSI for on-road or urban riding.

OTHER MODELS IN THE SERIES

€499

SPYKE 24D (GEN4)

Hardtail | Kids | Alloy

50mm Travel
24"
13.66kg

€599 €899

SE SERIES FAT 24

Hardtail | Fat Bike | Alloy

Alloy Fork
24" x 4.0" Wheels
1x8 Speed Microshift
14.4kg

€899

SE:SERIES TRAIL 26D

Dual Suspension | Youth Trail | Alloy

120/120mm Travel
26" x 2.25" Wheels
1x8 Speed Shimano
15.5kg

Geometry

FIND YOUR FIT.

Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

GEOMETRY.

map	type(mm unless specified)	S
	Rider height(cm)	130-150
	Rider inseam(cm)	59-68
A	Seat tube c/t	330
B	Seat tube angle	73
C	Head tube angle	69
D	Top Tube	535
E	Reach	378
F	Chainstay length	425
G	bb height	306
H	head tube length	110
I	stack	513
J	standover	660
K	Wheelbase	1026
