Frame

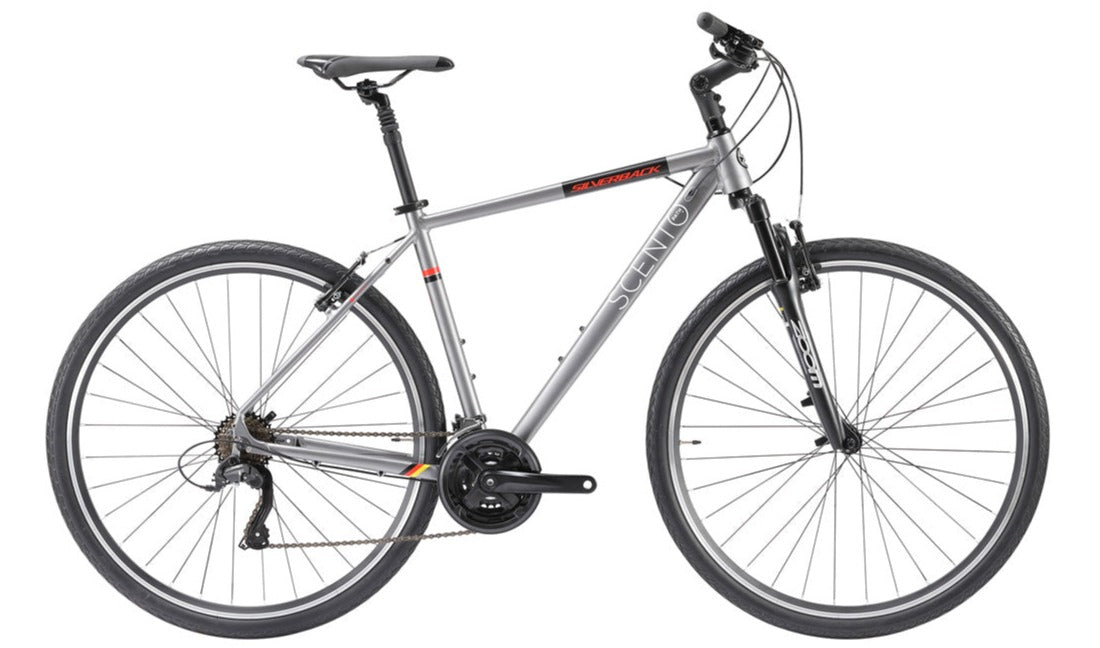

Aluminium City Bike, Custom Triple Butted Hydro-formed 6061 Frame, V-Brake Mounts. Supports 700C Wheelsize. Compatible mounts for Fender and Rack installation.
SPECIFICATIONS.
FRAMESET
Frame
Aluminium City Bike, Custom Triple Butted Hydro-formed 6061 Frame, V-Brake Mounts. Supports 700C Wheelsize. Compatible mounts for Fender and Rack installation.
Headset
Integrated 1-1/8" to 1-1/2"; ZS44/28.6 ZS56/40
Frame Axle Spacing
135x9mm
Axle Specification
QR
Hanger Type
HANGER 25
SUSPENSION
Fork
Zoom 187 AMS
Fork Travel
65mm
WHEELS
Wheelset
SURFACE Custom
Hubs
F: Alloy, 100x9mm QR, 32H
R: Alloy, 135x9mm QR, 32H
Rims
F: 700C Alloy Rim, 32H
R: 700C Alloy Rim, 32H
Tyres
F: 700Cx40C Wanda Metro Elite
R: 700Cx40C Wanda Metro Elite
Max Tyre Size
40C
DRIVETRAIN
Crankset
SURFACE Alloy 42/34/24T
Max Chainring Size
42/34/24T
Bottom Bracket & Type
BSA73
Shifter(s)
L: Shimano Tourney ST-EF41-L Shift/Brake Lever, 3-speed
R: Shimano Tourney ST-EF41-L Shift/Brake Lever, 7-speed
Front Derailleur
Shimano FD-TY300 Tourney, Band Type 31,8mm
Rear Derailleur
Shimano RD-M310-L Altus, 7-speed
Cassette
Shimano Tourney MF-TZ500-7, 14-28T
Chain
PYC 7 Speed
BRAKES

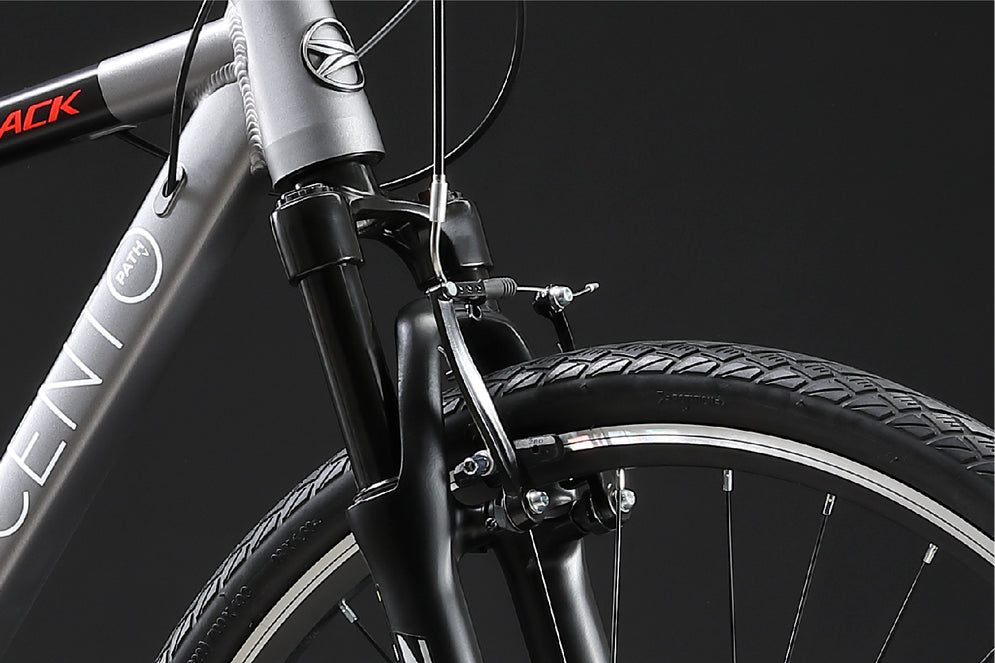

Brakes
F: Melt-Forged Alloy V-Brake
R: Melt-Forged Alloy V-Brake
COCKPIT
Grips
SURFACE Push-on
Handlebar
Alloy Handlebar, Ø31,8mm, 760mm Width, 9° Backsweep, 45mm Rise
Stem
SURFACE Alloy, Adjustable Rise
Saddle
SURFACE
Seat Post
SURFACE Aluminium, Ø27.2mm
Seatpost Clamp
SURFACE QR Clamp
Pedals
One Piece Alloy Pedal
WEIGHT
Bike Weight
12.04 kg
RIDER WEIGHT LIMIT
120kg - combined weight of bike and rider (including all kit).
