New Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, 142mm x 10mm QR axle dropouts, 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 29" x 2.35" tyre clearance, removeable battery, rack and fender mounts.
Semi-integrated threadless, ZS44/28.6, ZS56/39.8
142 x 10mm
100 x 9mm
Hanger 03
Ananda 250W, 50Nm torque, 25Km/h Rear-hub Motor
504Wh In-Tube Battery, Weight: 2.56Kg. (Using LG Korea cells)
2A Charger, EU 3-Pin
Display and Remote Control
Integrated with on-bar display
SR Suntour XCM32 Coil, 29"x2.4", 120m Travel, LO Damper, 32mm Stanchions
120mm
Surface Custom Wheelset
F: Shimano HB-QB400, QR, 32H, 100mm OLD, Disc 6-Bolt
R: Rear-Hub Motor, 36H.
F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
R: Surface Alloy, 36H, 29" x 25mm, Symmetrical, Tubeless Ready
F: CST 1879 29" x 2.25"
R: CST 1879 29" x 2.25"
2.25"
Alloy, 38T, 170mm
38T
R: Shimano Acera SL-M315-8R, Rapidfire Plus, 8-speed
Shimano Acera RD-M3020-8, SGS, 7/8-Speed
Shimano Acera CS-HG400-8, 11-34T, 8-Speed
KMC Z8.3
F: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads
R: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads
F: Shimano SM-RT26 180mm
R: Shimano SM-RT26 160mm
Surface ergo
Surface, Alloy, Dia: Ø31.8mm, 740~760mm, 9° Backsweep, 30mm Rise
Alloy Stem, Ø31.8mm, 60mm Extension, ±6° Rise
Surface E-bike saddle
Surface Ø30.9mm lightweight Alloy
Surface Alloy

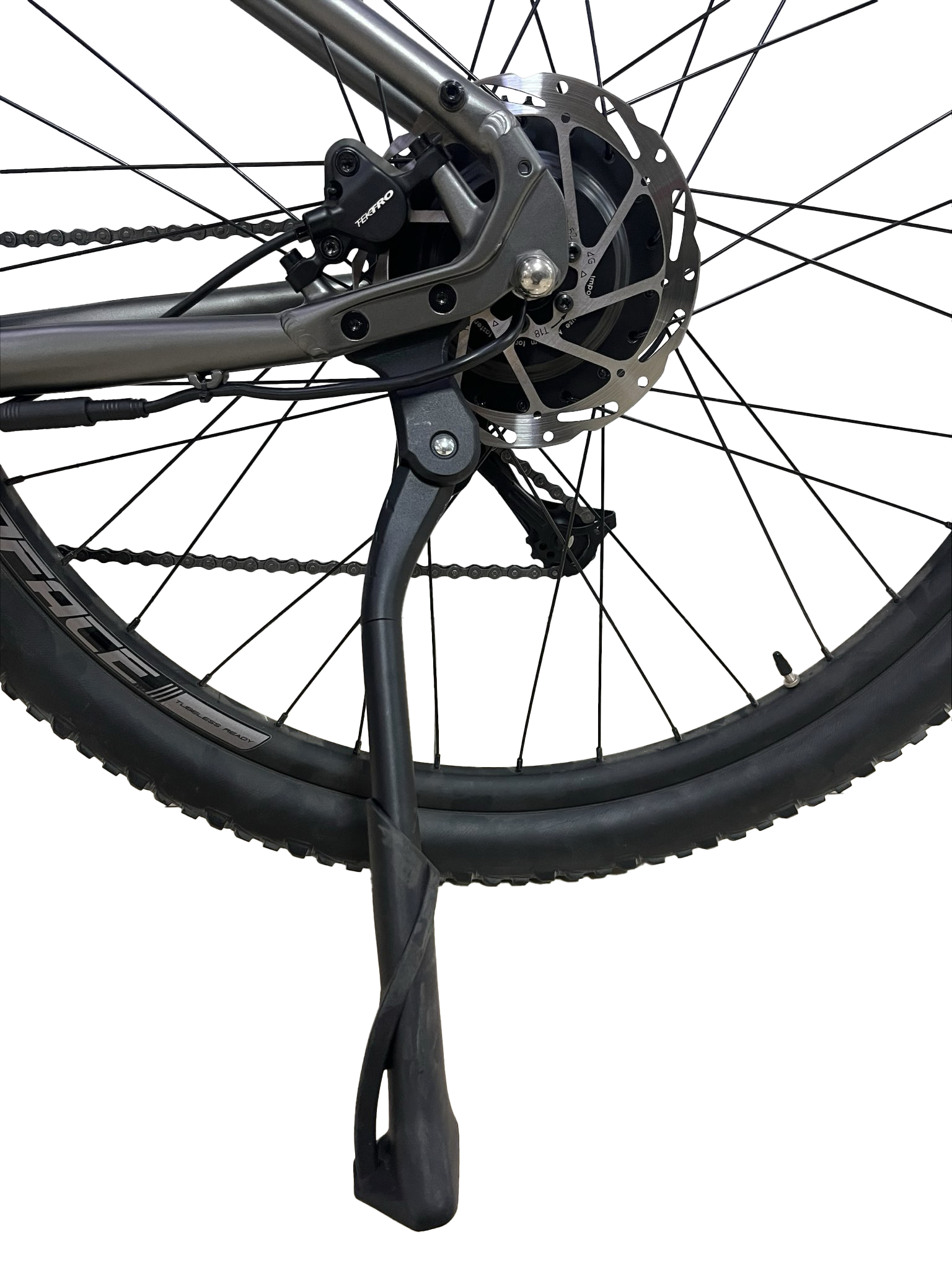

Surface, Alloy, 40mm direct-mount 2-bolt, adjustable foot
22.5kg
130kg - combined weight of bike and rider (including all kit).
