Headset Type	Integrated
Steerer	1-1/8” – 1.5”
Bearings	Premium
Top Cap Material	Aluminium
Bolt Material	Stainless steel
Crown Race Material	Aluminium
Colours	Black

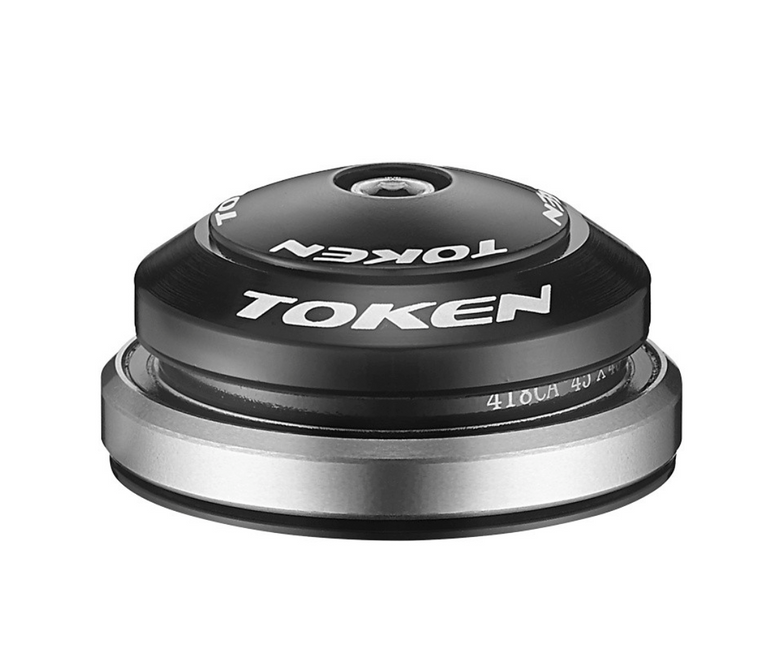

Token Headset A83-15

Using OMEGA series rudders, you can be sure that they will spin for a long time completely without giving us any trouble. They have been comprehensively tested, so with a clear conscience we can qualify them for the premium class.

SEALED 1-1/8 ACB TOP

1.5" INDUSTRIAL SEALED BTM (FOR 46/56MM HEAD TUBES)

STANDARD 15MM TOP COVER ALU.

STANDARD 15MM TOP COVER

Bearings: premium quality

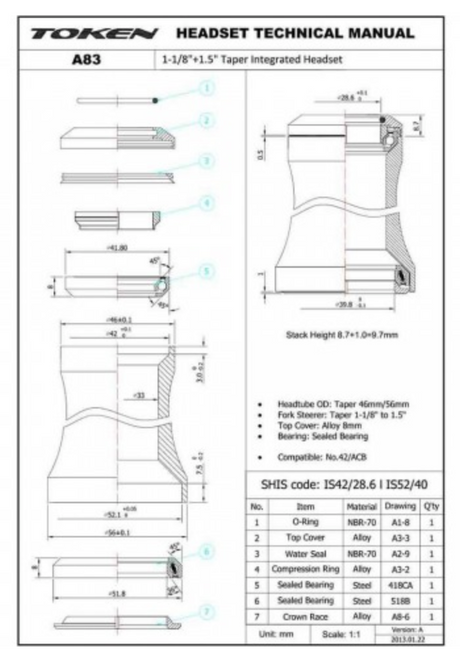

OMEGA-A83

IS42/28.6 l IS52/40

90 g / set

With/without tread	Without tread
External diameter buttom	52.0 mm
External diameter top	42.0 mm
Internal diameter buttom	38.1 mm
Internal diameter top	28.6 mm

Token A83 headset 1,5"

1-1/8 "1,5" Aluminum integrated headset

CNC aluminum Top Cover in Ø46 mm for 1 1/8 "

CNC aluminum 7075 T6 Crown Race in I.D Ø39.8mm for 1,5 "

Bearings

TK418A: Ø30.2x41.8x8x45º in the top

TK518H: Ø40x51,8x8x45º/45º in the bottom

Height: 16,8 mm

OMEGA-A83

(IS42/28.6 I IS52/40)

Compatible for Synergy Models.

Token Integrated headset Omega A83 ahead 1-1/8'' taper 1,5'' black 42/52mm
