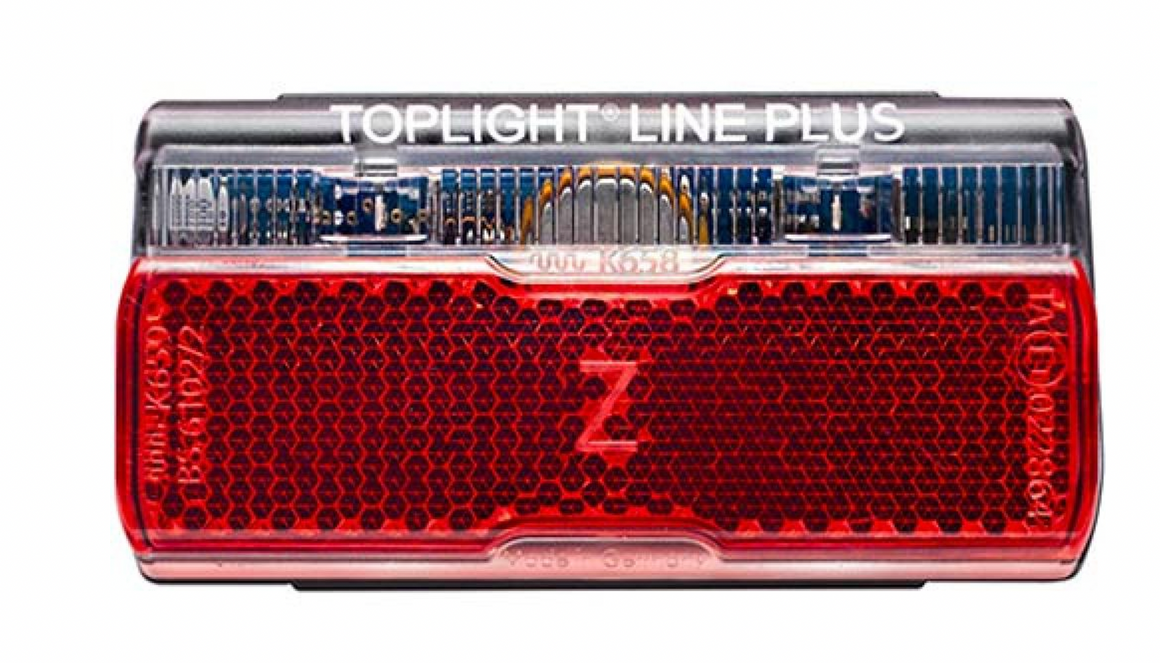

The perfect supplement for safety: the Toplight Line Brake Plus LED rear light by busch+müller

At the core of the BrakeTec Technology is a processor, which is integrated into the rear light; it evaluates signals from the hub dynamo. As soon as the speed decreases suddenly and significantly, the rear light glows much brighter. Just like a brake light would, it warns the traffic behind you.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:: rear light (red)
Mount:: bolt spacing 50 - 80 mm
Light Source:: 2 x LED
Power Source:: dynamo hub, bottle dynamo

Technical Information:

Material:: Composite
Standing Light:: yes (can be turned off)

Approved For:

Street Use in Germany:: yes, for bicycles (according to §67 StVZO)
Check Number:: K~~659

Features:

with two high-power LEDs
90 mm LineTec® light strips (clear glass, glows red)
super bright
up to 320° visibility
practical standing light function through the use of capacitor technology
automatic standing light switch-off after 4 minutes (parking function) or manually with immediate effect
super slim design
integrated Z-large area reflector
optionally with a 50 or 80 mm bolt distance
StVZO approved

Technology:

Standing Light
This innovation by busch+müller from the nineties has become the safety standard. The additional " plus" indicates that standing lights are integrated into the equipment. Neither batteries nor rechargeable batteries are required for the standing light. This is how it works: As soon as the bike is stationary, an LED standing light is supplied with power by a maintenance-free capacitor. The capacitor charged itself during the journey.

BrakeTec
The new BrakeTec Technology is a brake light function and is integrated into the rear light. However, no power connection to the brake is needed.

LineTec
LineTec is a patented light system with a special lens effect. The punctual light from high-power LEDs is fanned out into a wide light strip which illuminates evenly. A rear light with LineTec light band emits a " spatial" light. Therefore other road users can estimate the distance much better and faster.

Manufacturer's Notice:
The BrakeTec only works if the rear light is connected to a dynamo front light, whose rear light connections supply an alternating current. A brake light function is not possible in combination with front lights that supply a direct current to the rear light. All dynamo front lights from busch+müller are designed in such a way that the BrakeTec function is available without restrictions.

Manufacturer Numbers:


80 mm:: 323/8ALTV-02

Contents:

1 x busch+müller Toplight Line Brake Plus rear light
incl. mounting material

Weight:

red-black/80 mm: 53 g

Busch & Müller Toplight Line Brake Plus LED Rear Light w/ Brake Light - StVZO Approved
