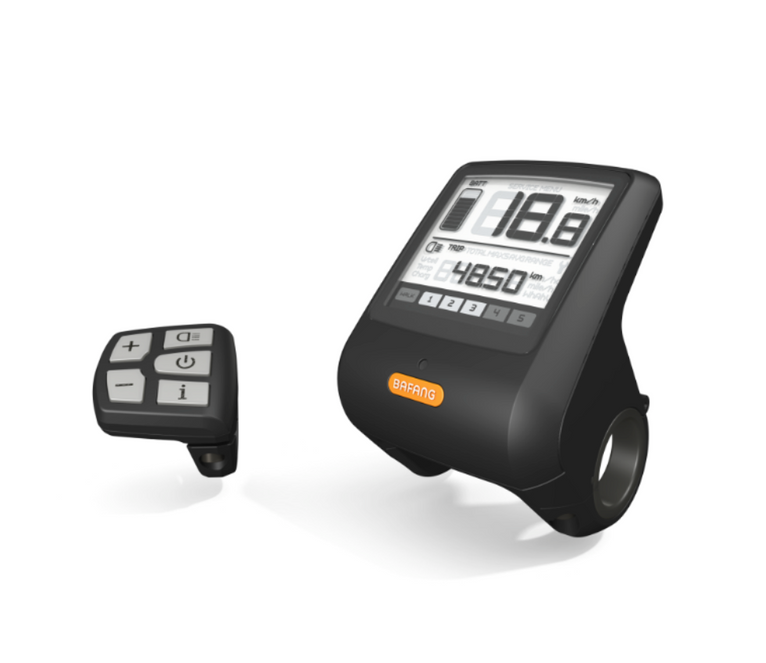

Bafang DP C07 LCD display with UART communication protocol, recognizable by the round connector.

Includes mounting rubber bands and screws.

Wheel size and speed limit are NOT adjustable. The wheel size is set to 28" by default and the speed is set to 25 km/h.

Suitable for BBS01B / BBS02B / BBSHD, and various e-bikes with MAX drive M400 systems, as well as front and rear wheel motor systems that use the UART communication protocol.

With a 5-pin round connector.

Display cable length: 23 cm.

Control button cable length: 30 cm.

Weight: 185 g.

Display Functions:

Speedometer (Speed / MAX / AVG)
Odometer (TRIP / ODO)
Time and trip meter
Pedal assistance with 1–5 levels
6 km/h Start & Go function
Battery indicator
Night light

DP C07.CAN; CAN; Cable length: 230mm; Control Unit Cable: 300mm

Item Number:

2102022202002

Waterproof: IP X5
Certifications: CE / EN 15194 / REACH / ROHS

Bafang Display DP C07
