DESCRIPTION

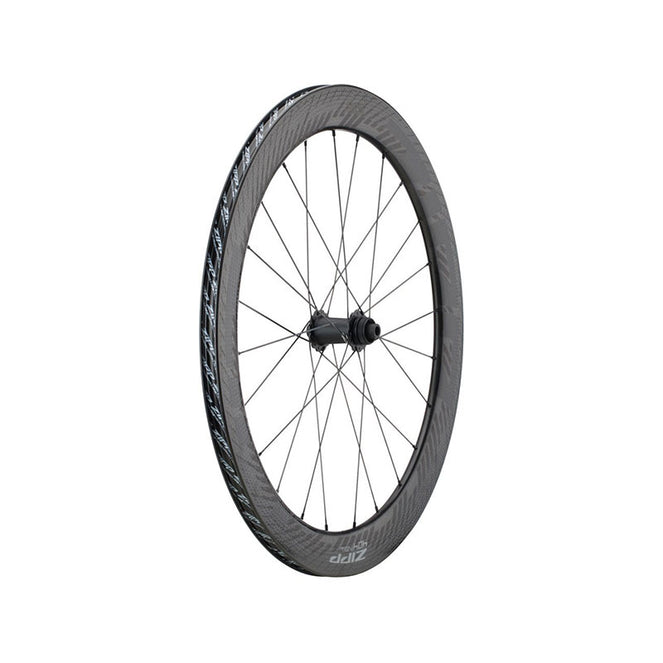

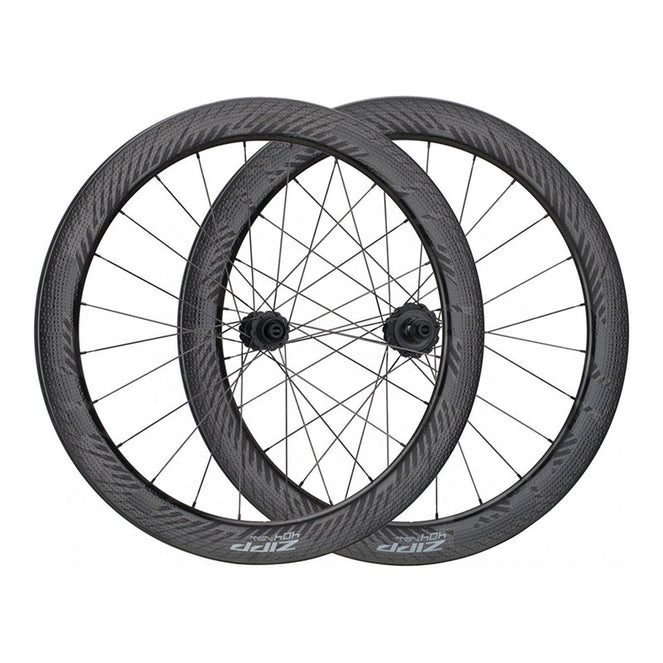

Zipp 404 NSW Tubeless Disc-Brake Wheelset
The Zipp 404 NSW Tubeless Disc-brake features an innovative rim shape that enhances aerodynamic efficiency and reduces side force, paired with the Cognition disc-brake hubset for increased durability and reduced drag. With a 58mm rim depth, this wheelset is perfect for road cyclists and triathletes seeking greater speed and stability. The design aerodynamically integrates wider tubeless tires, improving ride quality and performance. Tubeless benefits include superior flat protection, the ability to run lower pressures, and a smoother ride with excellent cornering grip and low rolling resistance. This versatile wheelset allows for the option of running tubeless or traditional clinchers.

Product features

Use: Road, Triathlon
Model: 404 NSW Tubeless Carbon Clincher
Rim size: 28"
Tyre type: Clincher
Spokes: 24
Brake type: Disc Brake (Centerlock)
Tubeless system: yes
Max recommended system weight: 113kg (body weight + bike + equipment)
Max tire pressure: 8.62bar (125psi)
Rim: Zipp NSW
Inner Rim witdh: 19mm
Rim depth: 58mm
Valve hole: SV (6.5mm)
Hub: Zipp Cognition
Hub axle system: 12 x 100mm Thru Axle, 12 x 142mm Thru Axle
Spoke type: Sapim CX-Ray
Spoke pattern: 2-cross
Nipple type: Sapim secure-loc, J-bend

Material

Rim: Carbon
Hub: Aluminum
Spokes: Stainless steel
Nipples: Aluminium

SPECIFICATION

Size (wheels)	700c
Rim construction	Carbon - w/Hooks
Tire compatibility	Tube-type or Tubeless tires
Brake compatibility	disc
Driver body type	n/a, SRAM XDR, SRAM/Shimano Road
Rim - inside width	20mm
Rim finish	UD fiber, Impress technology
Rim profile	Symmetrical
Weight (g)	1592
Weight Based On	Wheel set in lightest configuration: Front: 725g Rear: 867g

FAQ

What is the maximum recommended rider weight for the Zipp 404 NSW Tubeless Carbon Clincher Wheelset?
The Zipp 404 NSW Tubeless Carbon Clincher Wheelset has a maximum rider weight of 115Kg.

What is the maximum tyre pressure for the Zipp 404 NSW Tubeless Carbon Clincher Wheelset?
The Zipp 404 NSW Tubeless Carbon Clincher Wheelset has a maximum tyre pressure of 8.62 BAR.

Is the Zipp 404 NSW Tubeless Carbon Clincher Wheelset aerodynamic?
Yes, the Zipp 404 NSW Tubeless Carbon Clincher Wheelset sawtooth accomplishes this by inducing small sheet vortices that shed at a low magnitude, but at a higher natural frequency, thus decreasing the laminar bubble effect on the aerodynamically shielded side of the rim’s profile to further reduce high yaw drag and improve crosswind stability.

Zipp 404 NSW Carbon Clincher™ Disc brake Tubeless Wheelset
