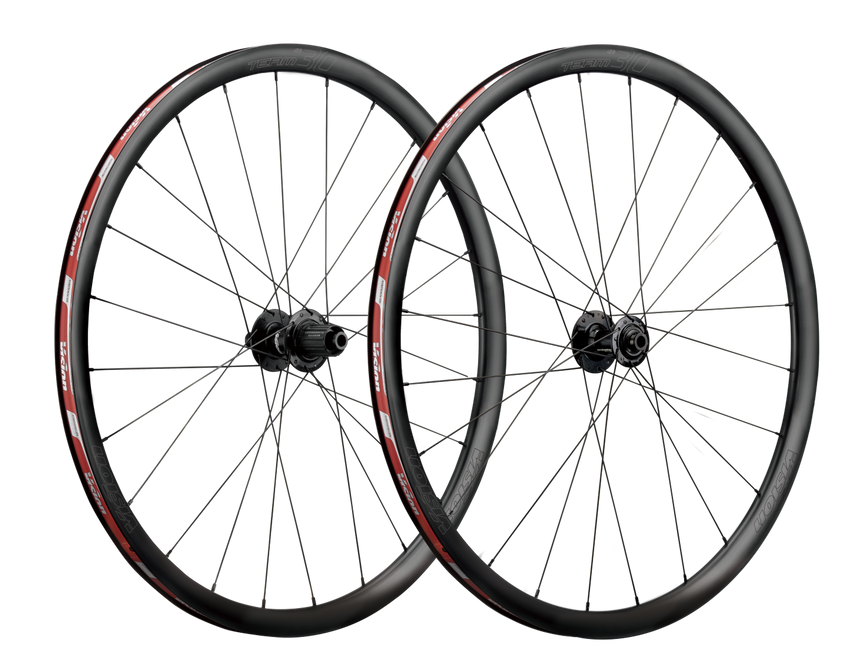

Vision Team30 i23 DB CL-TL Shimano HG Wheelset

Planning your next wheel upgrade? The Vision Team30 i23 combines 30 mm-deep alloy rims with a 23 mm internal width, CNC alloy hubs and J-bend spokes. This listing is for the Centerlock disc-brake version with a Shimano HG freehub, manufacturer reference 710-0140091010.

Product identification

Brand: Vision
Model: Team30 i23 DB CL-TL Shimano HG
Product: Wheelset
Manufacturer reference / SKU: 710-0140091010
Catalogue model code for the Centerlock version: WH-VT-323CHTL/DB-CL

Manufacturer specifications

Wheel size: 700C (catalogue designation: 700)
Rim material: alloy
Rim depth: 30 mm
Internal rim width: 23 mm
External rim width: 27 mm
Hubs: CNC alloy hubs
Spokes: J-bend
Bearings: 6 sealed chromoly cartridge bearings, 2 front and 4 rear
Rotor mounting: Centerlock for this DB-CL version
Freehub: Shimano HG; catalogue lists SH HG 10–12-speed
Construction: entirely hand-built
Catalogue weight: 1,988 g per pair
Catalogue use classification: ASTM 2

The supplied catalogue sheet covers multiple Team30 i23 configurations, including ISO 6-bolt and alternative freehubs. Those alternatives are not included or interchangeable by default with this Centerlock/Shimano HG listing. The 1,988 g figure is the catalogue wheelset weight, not the packaged shipping weight.

Choose the right fit for your bike

Before ordering, confirm the front and rear axle standards, Centerlock rotor compatibility, cassette requirements and approved tyre sizes for this exact reference. Shimano HG cassette fit depends on the specific cassette standard and any required spacers; do not assume every Shimano 12-speed cassette fits. Axle dimensions and included adapters are not specified in the supplied catalogue sheet.

Explore our Wheels & Tyres collection for related wheel and tyre options. If you need help identifying the right setup, quote reference 710-0140091010 when contacting Silverback Bikes.

Frequently asked questions

Which Vision wheelset is this?

This listing is for the Vision Team30 i23 DB CL-TL Shimano HG wheelset, reference 710-0140091010. The supplied catalogue identifies the Centerlock version as WH-VT-323CHTL/DB-CL.

What are the rim dimensions?

The alloy rims have a 30 mm depth, 23 mm internal width and 27 mm external width. The catalogue lists the wheel size as 700.

Does this version use Centerlock or 6-bolt rotors?

This DB-CL listing is the Centerlock version. The catalogue also shows a separate ISO 6-bolt configuration; do not confuse the two when choosing rotors.

Which cassette can I use?

This listing specifies a Shimano HG freehub, and the catalogue lists SH HG 10–12-speed. Confirm your particular cassette's freehub requirements and spacer needs before installation. Other freehub options shown in the catalogue are separate configurations.

How much does the wheelset weigh?

The manufacturer's catalogue lists 1,988 g per pair. This is a catalogue wheelset figure, not shipping weight.

Will this wheelset fit my bike?

Fit depends on your bike's wheel size, axle dimensions, brake setup and drivetrain. Check these against the exact wheelset before ordering; axle dimensions are not supplied in the attached catalogue sheet.

Can I run tubeless tyres?

Confirm the manufacturer's tubeless requirements for this exact version, including approved tyres, rim tape, valves and sealant, before installation.

Are tyres, rotors and a cassette included?

The package contents still need confirmation. Do not assume tyres, rotors, a cassette or tubeless accessories are included.

Where can I browse related products?

Visit our Wheels & Tyres collection to explore related products and compare your options.
