Frame

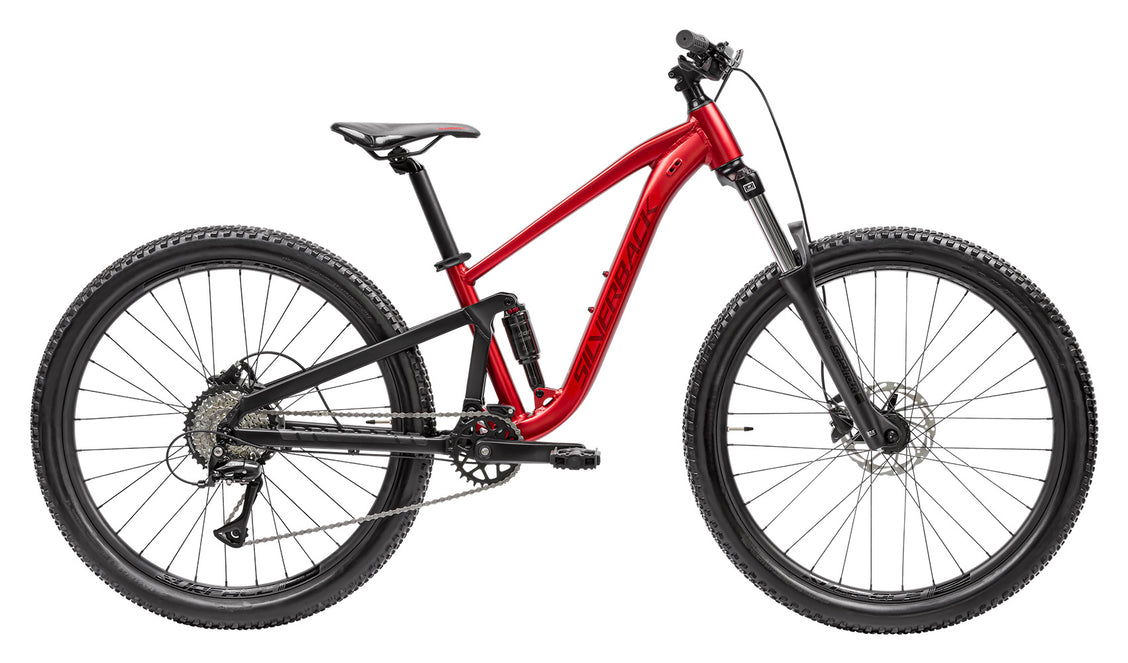

Alloy Trail Dual suspension Frame for 26" wheels. True single pivot design, 120mm Rear Travel with 170x35mm Rear Shock. 20x10mm hardware. BSA Bottom Bracket. OLD 142.
SPECIFICATIONS.
FRAMESET
Frame
Alloy Trail Dual suspension Frame for 26" wheels. True single pivot design, 120mm Rear Travel with 170x35mm Rear Shock. 20x10mm hardware. BSA Bottom Bracket. OLD 142.
Headset
Semi-Integrated Threadless Headset, ZS44/28.6 [[PIPE]] ZS56/30
Frame Axle Spacing
142x12mm
Axle Specification
175 x 12mm P1.75
Hanger Type
Hanger 03
SUSPENSION
Fork
SR Suntour XCM32 DS, 27.5", 32mm Stanchions, 1-1/8" Tapered steerer tube, OLD:100x9mm, 120mm Travel, Custom softer spring for lighter weight riders
Fork Travel
120mm
Rear shock
SR Suntour Raidon R, 170x35mm, 43 x 10mm Hardware Top, 20 x 10mm hardware Bottom.
Rear Suspension Travel
120mm
Shock Mounting
Body: Standard, 43x10mm
Shaft: Standard, 20x10mm
Eye-to-Eye x Stroke
170x35mm
WHEELS
Wheelset
Surface Custom Wheelset
Hubs
F: Alloy, 6-bolt, 100 x 9mm QR
R: Alloy, 6-bolt, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 142mm
Rims
F: 26" Symmetrical Alloy Rim, 25mm Internal width, Tubeless Ready
R: 26" Symmetrical Alloy Rim, 25mm Internal width, Tubeless Ready
Tyres
F: CST C1846 26x2.25"
R: CST C1846 26x2.25"
Max Tyre Size
2.25"
DRIVETRAIN
Crankset
Alloy Crank with 30T Narrow Wide Steel ring, 152mm crankarm length
Max Chainring Size
32T
Bottom Bracket & Type
BSA73
Shifter(s)
R: Shimano Altus SL-M315-8R Rapidire Plus Shift Lever, with optical gear display, 8-speed
Rear Derailleur
Shimano Acera RD-M3020, 8-Speed
Cassette
Shimano Acera CS-HG400, 11-40T, 8-Speed
Chain
KMC Z8.3, 108-Links
BRAKES
Brakes
Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Rotors
Shimano SM-RT26, 160mm, 6-bolt
COCKPIT
Grips
SURFACE Single Density, 120mm
Handlebar
SURFACE Alloy, Ø25.4mm, 10° Back sweep, 20mm Rise, 620mm width
Stem
SURFACE Alloy, Ø25.4mm, Extension: 40mm, Rise: 7°
Saddle
SURFACE Youth
Seat Post
SURFACE Alloy, Ø30.9mm
Seatpost Clamp
SURFACE Alloy w/QR clamp
Pedals
9/16" Ball, PP
WEIGHT
Bike Weight
15.5 Kg
RIDER WEIGHT LIMIT
75kg - combined weight of bike and rider (including all kit).
